Aircraft CAD Block Plan DWG File With Top View And Dimensions

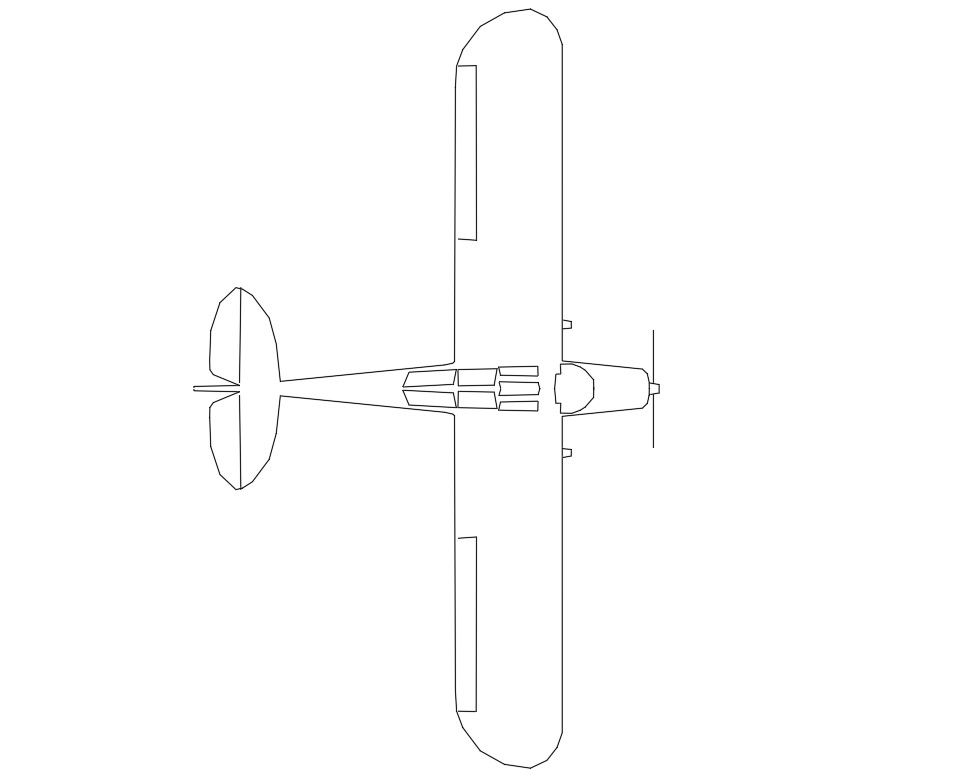

This Aircraft CAD Block Plan DWG File provides a precise top-view technical drawing for aviation-related architectural and planning projects. The file includes a detailed aircraft layout showing fuselage, wings, tail section, cockpit, and propeller arrangement in accurate proportion. Standard reference measurements such as 12000mm wingspan,n 9000mm fuselage length, 1800mm wing chord, and 2500mm tail span are clearly represented for scale-based planning. The block is ideal for airport layout, hangar plannin,g aviation training centers, museums, and simulation projects. It is created with clean line work and organized AutoCAD layers for easy editing, scaling, and integration into master plans.
