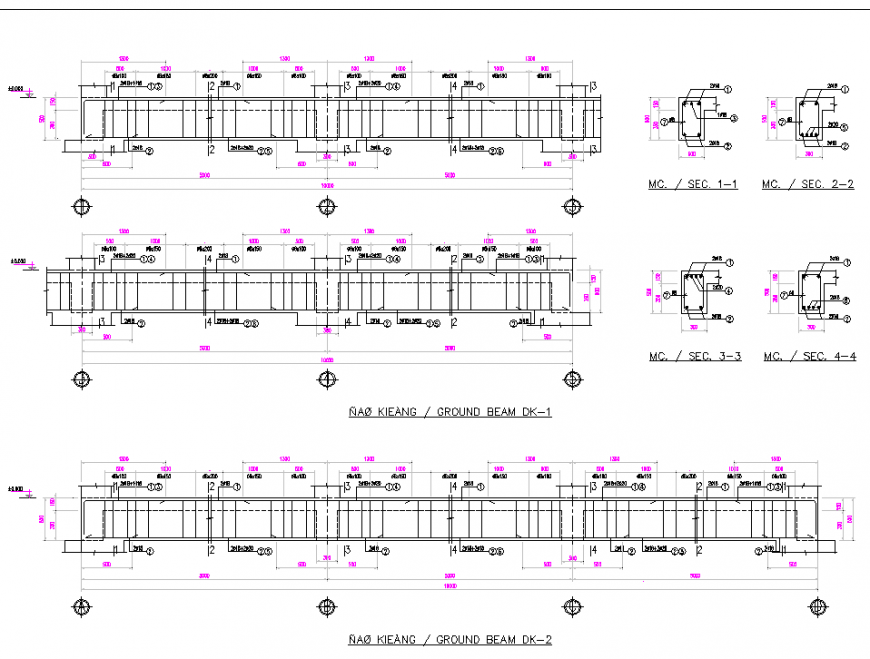

A the Beam and column section plan layout file
Description
A the Beam and column section plan layout file, centre line plan detail, dimension detail, naming detail, reinforcement detail, bolt nut detail, hidden line detail, hatching detail, stirrups detail, covering detail, leveling detail, not to scale detail, etc.
File Type:
DWG
File Size:
28.3 MB
Category::
Construction
Sub Category::
Concrete And Reinforced Concrete Details
type:
Gold
