Wall Mounted Outdoor Light Detail DWG with 3m Pipe and 50mm Conduit

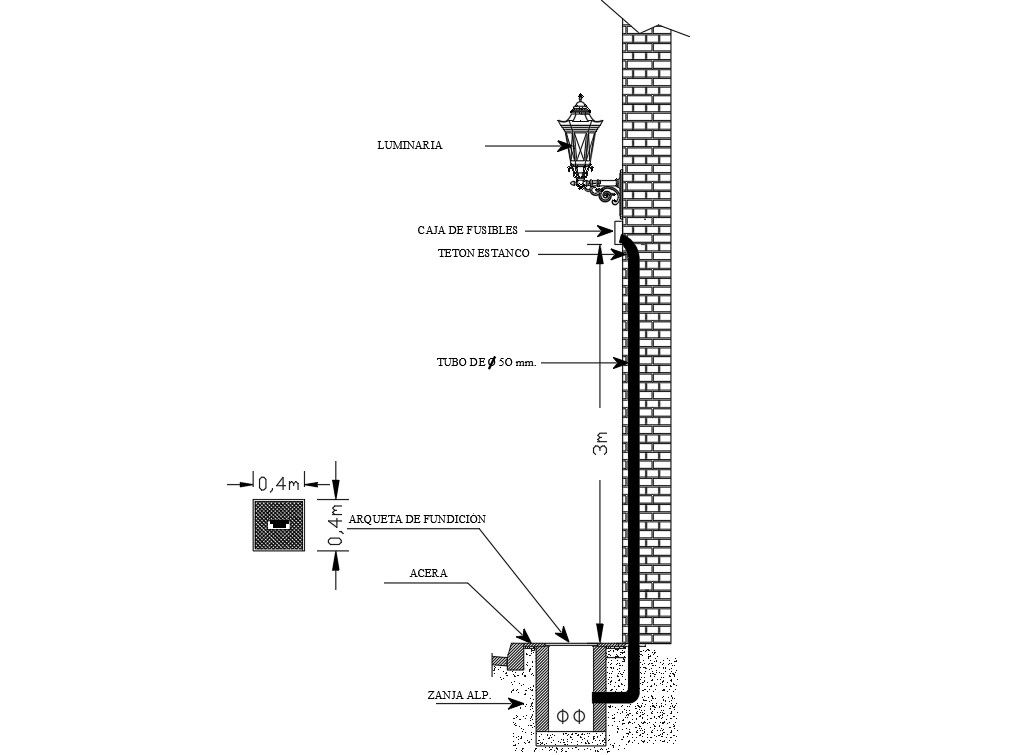

This Wall-Mounted Outdoor Light Detail DWG file provides complete technical and construction information for installing exterior lighting systems on brick and masonry walls. The drawing clearly illustrates the luminaire fixing position, fuse box connection, waterproof junction fitting, and electrical conduit routing. It includes a vertical pipe layout of 3 meters height with a 50 mm diameter conduit, underground cable trench, and foundation chamber measuring 0.4 m × 0.4 m. The section also shows pavement level, wall surface alignment, excavation depth, and electrical protection arrangement. All measurements are represented in meters and millimeters, ensuring accurate installation and compliance with site standards. This AutoCAD DWG file supports precise planning for residential, commercial, and public infrastructure lighting projects.
