Mosque DWG Plan With Dome, Minarets, Elevations, and Floor Layout

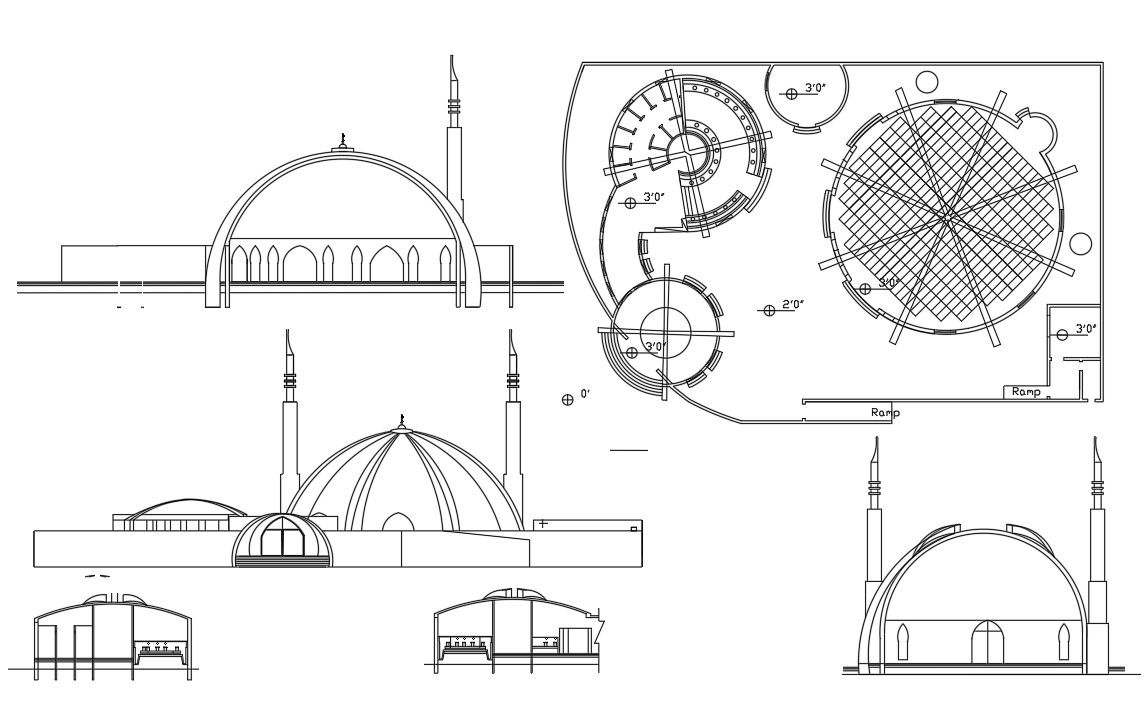

Download a detailed mosque DWG design featuring a large central dome, multiple minarets, and precise floor layouts for worship and community spaces. This architectural CAD drawing includes prayer halls, separate entrances for men and women, ablution areas, and spacious courtyards with optional water features. All dimensions are accurately marked for professional planning, ensuring the correct placement of structural elements and accessibility in the design. The drawing also provides sectional views and elevations, making it suitable for architects, civil engineers, interior designers, and builders who require detailed mosque planning for modern and traditional projects.

This DWG file presents a comprehensive layout for both the interior and exterior, covering carpeted prayer areas, geometric decorative patterns, and space for community activities. Designers can use this file to integrate functional features like mihrab, minbar, and circulation paths while maintaining proper alignment of architectural elements. Perfect for religious and educational projects, this CAD drawing enables precise planning, efficient workflow, and visual clarity for clients and stakeholders.
