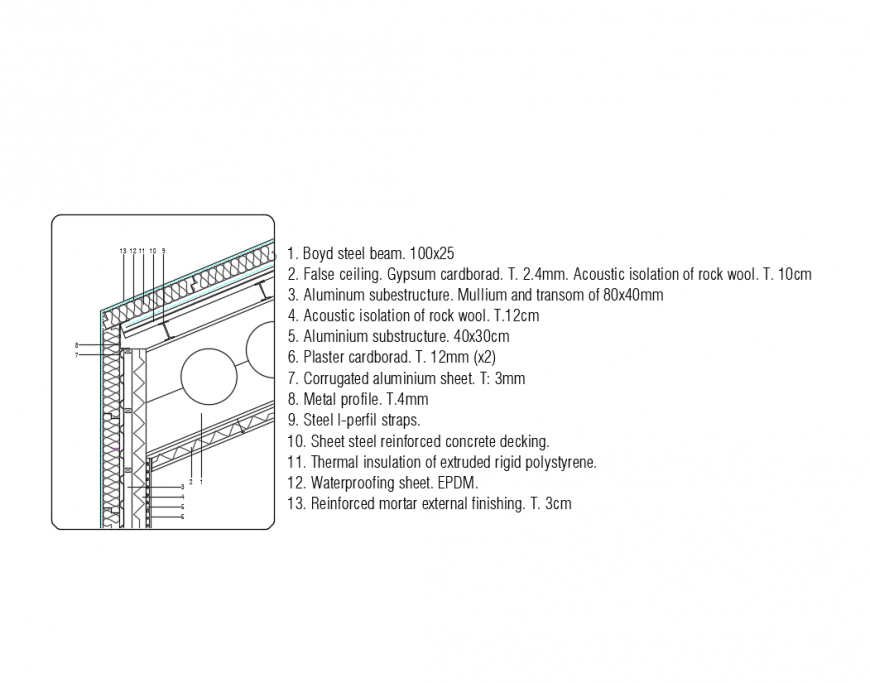

Ailsante continuous enclosure on a steel frame dwg file

Construction detail of Ailsante continuous enclosure on a steel frame dwg file. It is a continuous thermal envelope on deck and facade insulation, which gives better thermal insulation and water properties. The enclosure is placed on a structure of steel columns and beams void; together with a deck substructure corrugated panels with embedded thermal insulation supported on steel joists etc.
