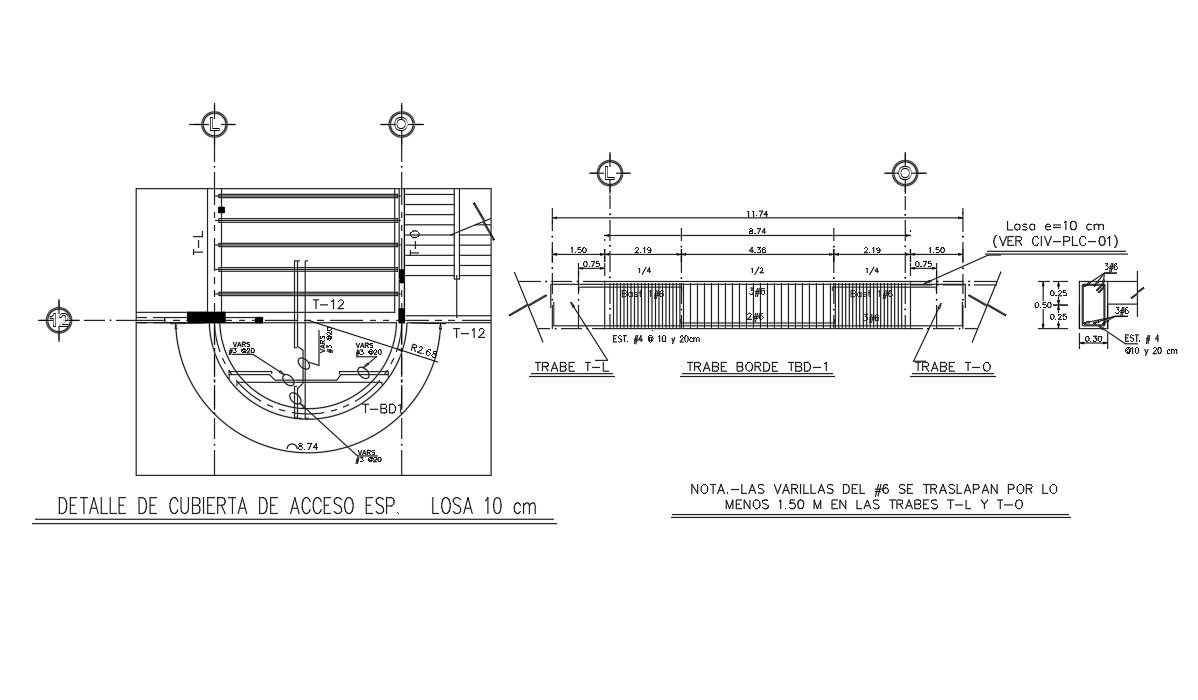

Steel Beam Detail AutoCAD Drawing with Access Cover Slab 10 cm

This Steel Beam Detail DWG drawing presents a clear and construction-ready AutoCAD detail for access cover and structural beam layout with a slab thickness of 10 cm. The drawing includes a precise steel bar arrangement, beam edge details, reinforcement spacing, and slab connection points. Dimensions for beam length, slab width, cover thickness, and reinforcement overlap are clearly marked for accurate on-site execution. The access cover detail shows proper alignment with the beam, supporting structural continuity and load transfer. Concrete and mortar application zones are indicated to guide correct material usage in structural construction, making the drawing suitable for practical engineering reference.

The Steel Beam Detail DWG File also includes sectional views and reinforcement detailing that explain bar diameter, spacing, anchorage length, and the connection between the beam and slab. Notes related to steel bar overlap and placement help civil engineers and builders follow standard construction practices. The drawing follows clean AutoCAD layering, consistent scale, and clear annotations for easy modification and coordination with architectural and structural plans. This beam detail drawing is useful for architects, civil engineers, and contractors requiring reliable steel beam and access cover detailing with accurate measurements for reinforced concrete construction projects.
