Column and Beam Detail AutoCAD Drawing Parapet Wall Section Layout

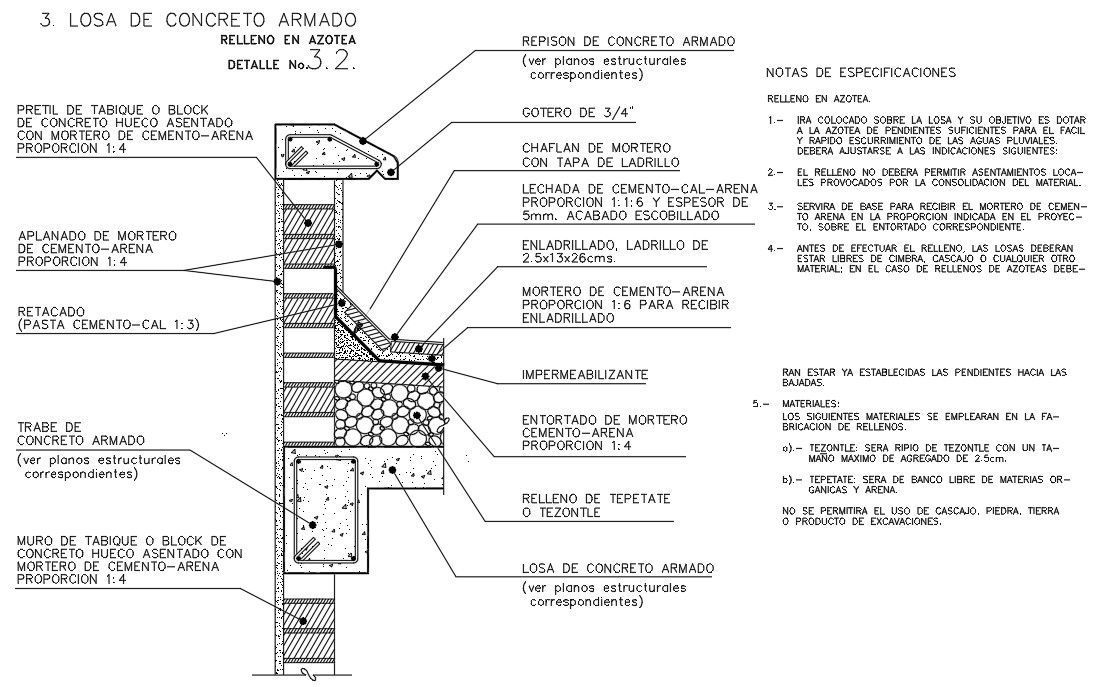

This Column and Beam Detail DWG drawing presents a comprehensive AutoCAD construction section detailing reinforced concrete column, beam, slab, and parapet wall assembly. The drawing illustrates hollow concrete block masonry seated with cement mortar in a 1:4 proportion, reinforced concrete beam and slab connections, and parapet wall buildup with proper slope and drainage. Layered components such as cement, sand plaster, brick or block infill, waterproofing, screed, and concrete filling are clearly shown with thickness references and material notes. The section explains load transfer from the parapet wall through the beam to the column, ensuring structural continuity and durability.

The Column and Beam Detail DWG File also includes construction notes, material specifications, and dimensional guidance for mortar proportions, block sizes, slab buildup, and finishing layers. These details help civil engineers, architects, and builders coordinate structural and architectural elements during execution. The drawing follows standard AutoCAD layering, scale consistency, and clean annotation, making it easy to edit and integrate into structural drawing sets. This detail is ideal for residential and commercial projects requiring accurate column beam junctions, parapet wall detailing, and reinforced concrete section drawings prepared for professional construction documentation.
