Simple Stair Detail AutoCAD Drawing with Tread and Riser Design

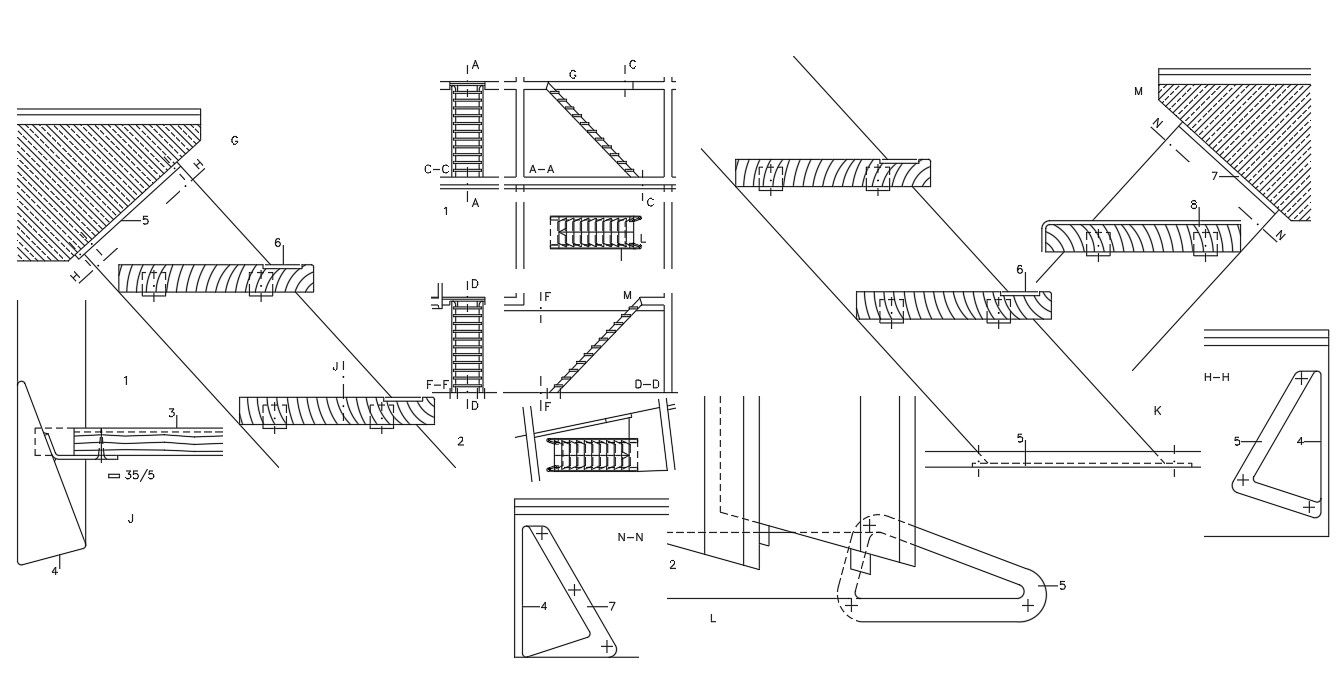

This Simple Stair Detail DWG drawing presents a clear and practical AutoCAD-based construction detail of a standard stair design showing tread and riser composition. The drawing includes sectional views, plan references, and connection details that explain how each step is formed using tread depth and riser height. Dimensions are clearly indicated to support safe and functional stair construction as per common architectural and structural standards. The detailing highlights step alignment, slope angle, landing connection, and edge finishing, making it suitable for residential and commercial stair layouts.

The Simple Stair Detail DWG File is useful for architects, civil engineers, and builders who require accurate stair construction references for drawings and execution. The file follows standard AutoCAD drafting practices with clean line work, clear annotations, and proper scaling for easy editing and reuse. It helps in understanding stair geometry, load transfer, and step continuity within floor levels. This stair detail drawing is ideal for integrating into building plans, working drawings, and construction documentation where simple and reliable stair detailing with correct measurements is required.
