Water Plumbing Detail Drawing for Fire Hydrant Column Pipe System

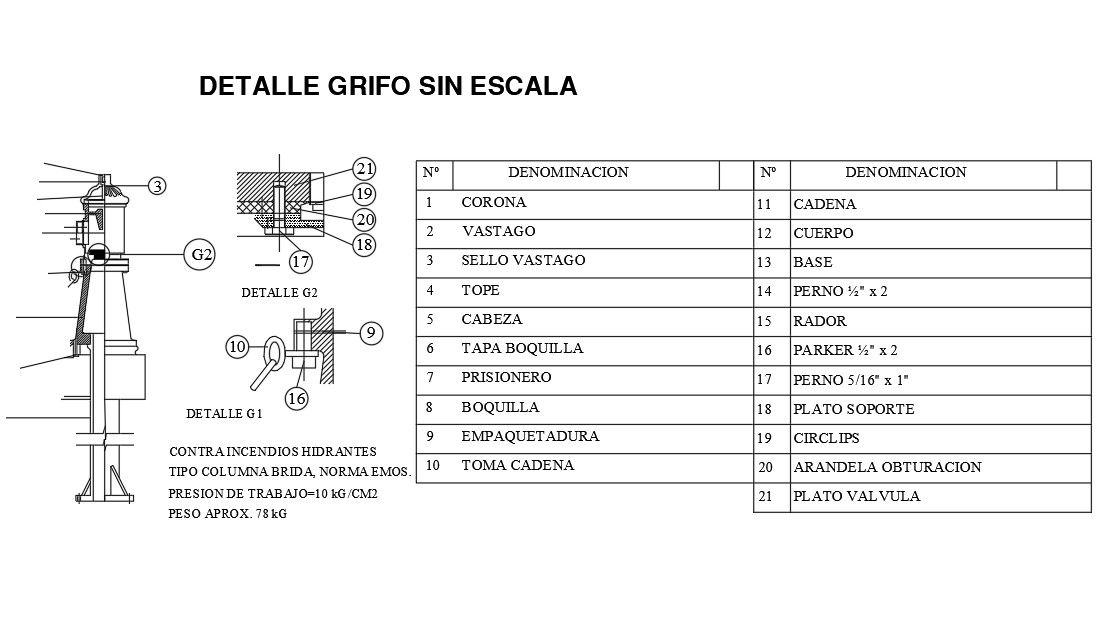

This Water Plumbing Detail AutoCAD drawing presents a clear, technical illustration of a fire hydrant column-type installation for water supply and fire protection systems. The drawing shows a vertical hydrant assembly with an internal water pipeline connection, valve mechanism, and outlet components. Detailed callouts identify each part, including crown, spindle, spindle seal, head, nozzle cap, nozzle, packing, chain connection, body, base, and valve plate. The drawing also includes sectional details labeled G1 and G2 to explain internal assembly and connection positioning. Design data specifies a working pressure of 10 kg per square centimeter and an approximate equipment weight of 78 kg, ensuring accurate technical reference for installation planning.

The AutoCAD DWG file further explains fastening and support components such as bolts sized one-half inch by two inches, washers, support plates, and sealing elements for water-tight performance. Pipe connection alignment and component numbering are clearly shown for on-site execution and maintenance clarity. This drawing is useful for architects, civil engineers, builders, and plumbing consultants working on fire safety and water infrastructure projects. Available through cadbull.com subscription, this water plumbing detail drawing supports precise CAD drafting, system coordination, and standardized hydrant installation documentation.
