Inspection Box Detail Drawing with Hermetic Sealing and Channel

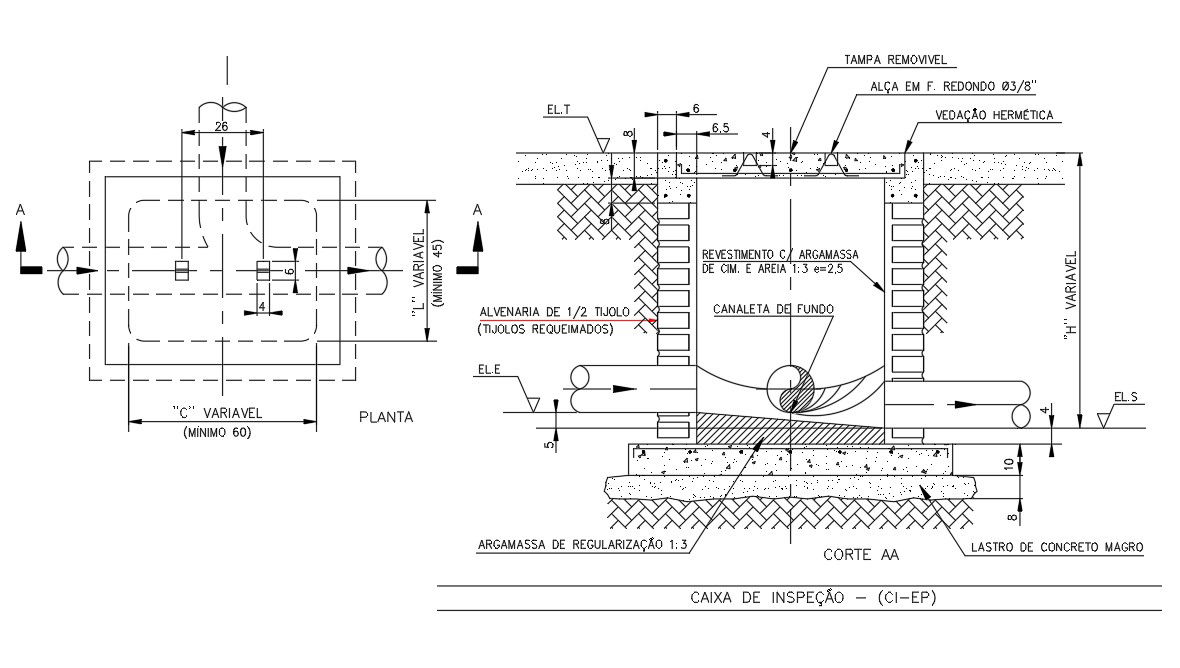

This Inspection Box Detail AutoCAD drawing provides a clear plan and section for an underground inspection chamber used in drainage and utility systems. The drawing includes a detailed plan view with variable internal dimensions marked as a minimum of 60 cm and pipe entry alignment from opposite sides. Section A–A illustrates the vertical assembly showing removable cover placement with a round steel handle of 3/8 inch diameter and hermetic sealing to prevent odor and water ingress. The internal channel at the bottom is clearly shaped to guide flow through the box, ensuring efficient drainage performance. Elevation levels are marked for inlet and outlet pipes, supporting accurate installation on site.

The sectional detail further explains construction materials and layers, including half-brick masonry walls, internal cement mortar lining with a 1:3 cement-sand ratio, and a regular mortar layer of 1:3 at the base. A lean concrete blinding layer is shown below the box for stable support. Variable height dimensions are indicated to adapt the inspection box to different site conditions. This AutoCAD DWG file is suitable for architects, civil engineers, builders, and infrastructure designers involved in drainage and inspection chamber detailing. Available through cadbull.com subscription, this inspection box detail drawing supports precise CAD drafting and reliable construction documentation.
