Wall Structure DWG Design with Cast-in Place Reglet and Water Line

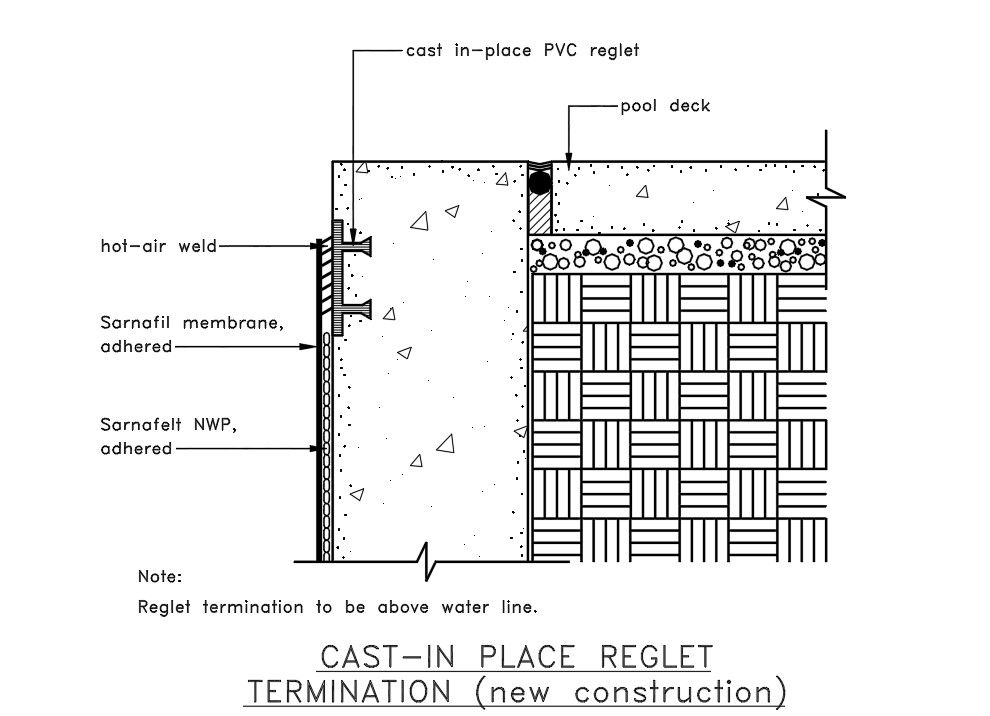

This Wall Structure Design DWG file provides a detailed technical layout for residential and commercial construction projects. The drawing features a cast-in-place PVC reglet, with reglet termination positioned above the water line, ensuring effective waterproofing and structural integrity. The plan highlights hot-air welds and includes Sarnafil membrane and Sarnafelt NWP layers adhered to the wall, providing durability and moisture resistance. Each element is dimensioned for professional verification, allowing architects, engineers, and builders to implement the design accurately in field conditions.

Ideal for professionals, this DWG file is compatible with AutoCAD, Revit, 3ds Max, and Google SketchUp, making it suitable for 2D drafting and 3D modeling workflows. Designers can use it for wall detailing, waterproofing planning, and construction supervision. By subscribing to cadbull.com, users gain access to thousands of high-quality DWG files for architectural and engineering purposes, saving time while ensuring precision. This Wall Structure Design DWG ensures compliance with construction standards and provides a reliable reference for implementing cast-in-place reglet systems, waterproofing layers, and proper wall finishes in new construction projects.
