Stair Railing Design AutoCAD Drawing with Detailed Measurements

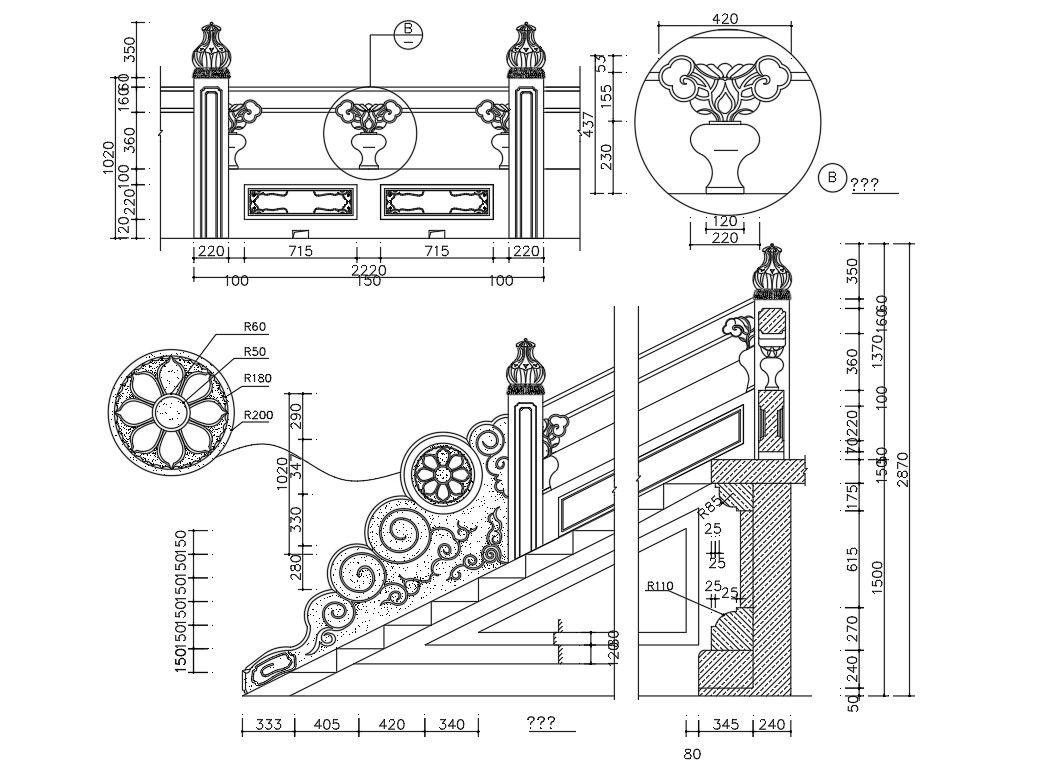

This stair railing design AutoCAD drawing provides detailed decorative and construction information suitable for residential and interior staircase projects. The drawing includes a complete railing elevation with ornamental patterns, post designs, and handrail alignment drawn to scale. Clear measurements are shown for railing height, post spacing, step rise, tread width, and overall stair slope to ensure accurate installation. Circular and floral decorative elements are detailed with exact radii and dimensions, helping designers maintain symmetry and proportion throughout the railing layout. The drawing also includes front elevation and detailed sectional views to explain railing connections and profile thickness.

The stair railing design DWG file further includes a side section illustrating step construction, base support, railing fixing details, and vertical height relationships. All dimensions are clearly marked in millimeters for professional use in construction drawings and interior detailing. This AutoCAD DWG file is ideal for architects, civil engineers, interior designers, and builders who require precise stair railing details for planning and execution. The drawing is compatible with AutoCAD and supports workflows using 3D Max, Revit, and Google SketchUp, ensuring easy modification and accurate visualization for staircase and railing design projects.
