Window Structure Details with Insulation and Waterproof Layer

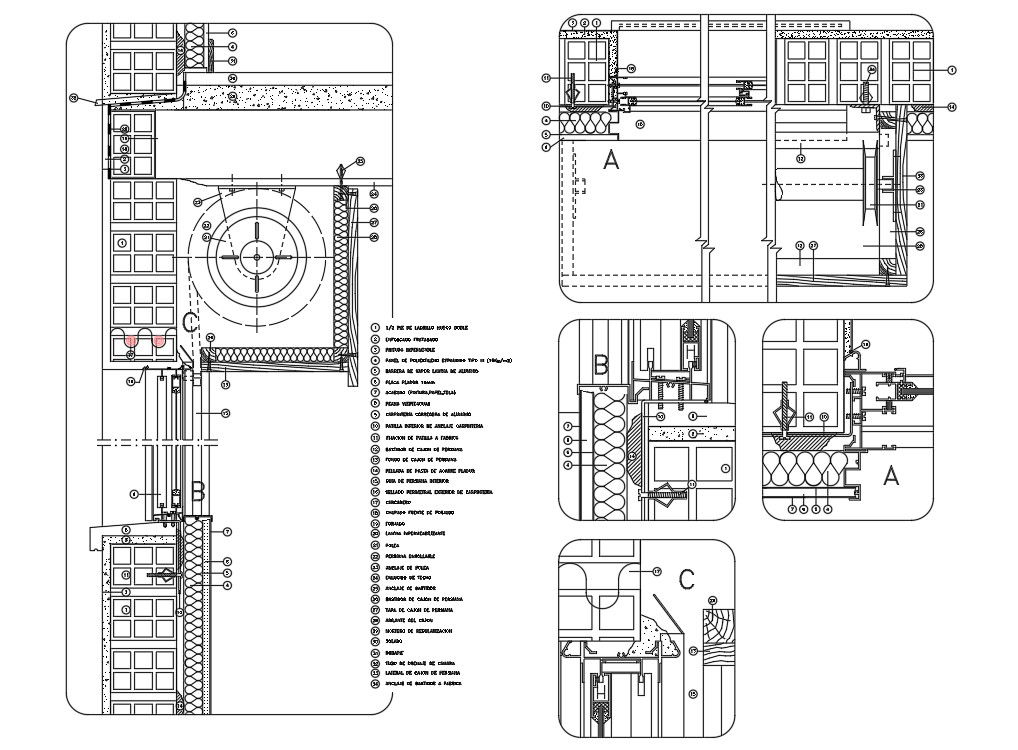

This window structure details drawing presents comprehensive sectional and connection layouts prepared in AutoCAD format for residential and commercial buildings. The drawing shows plastered wall assemblies with waterproof paint coating, expanded polystyrene insulation panels, external cladding layers, and internal finishing systems. It includes detailed window frame fixing methods, sill and lintel construction, drainage channels, sealing joints, and thermal break arrangements. Reference sections A, B, and C illustrate corner connections, vertical profiles, and junction points between masonry walls and window frames. All components are clearly labeled with material thickness, fixing positions, and alignment references to support accurate installation and long-term durability.

This window structure details DWG file is suitable for architects, civil engineers, façade consultants, and construction professionals working with AutoCAD, Revit, 3D Max, and SketchUp software. The drawing supports façade planning, thermal insulation coordination, moisture control design, and energy-efficient envelope construction. It assists in preparing execution drawings, material specifications, and quality inspection documents. With editable layers, scalable dimensions, and standardized technical symbols, this file improves drafting precision and reduces on-site errors. Download this professional window detailing drawing to enhance building envelope performance, construction accuracy, and CAD workflow efficiency.
