Digital X-ray Machine DWG AutoCAD Drawing with Layout and Elevations

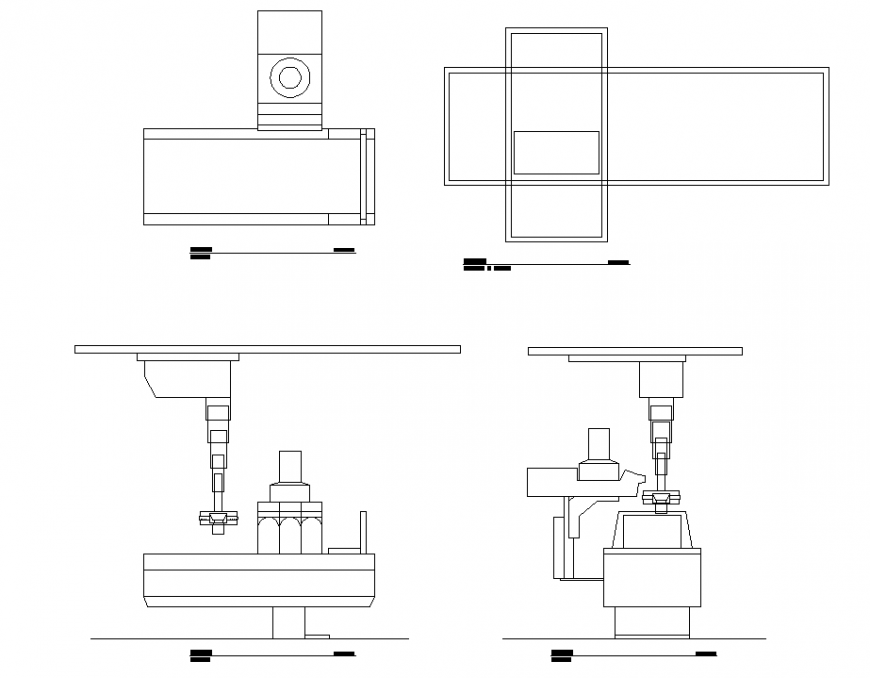

This AutoCAD DWG file provides a comprehensive drawing of a digital X-ray machine, featuring detailed views essential for planning and installation in medical facilities. The drawing includes the top view layout plan, cutout plan, front elevation, and side elevation, each with precise dimensions and specifications. This CAD model serves as a valuable resource for architects, engineers, and medical equipment planners, aiding in the integration of X-ray machines into hospital designs. The file ensures accurate representation and facilitates efficient planning and implementation.
