Transformer machine electrical system cad drawing details dwg file

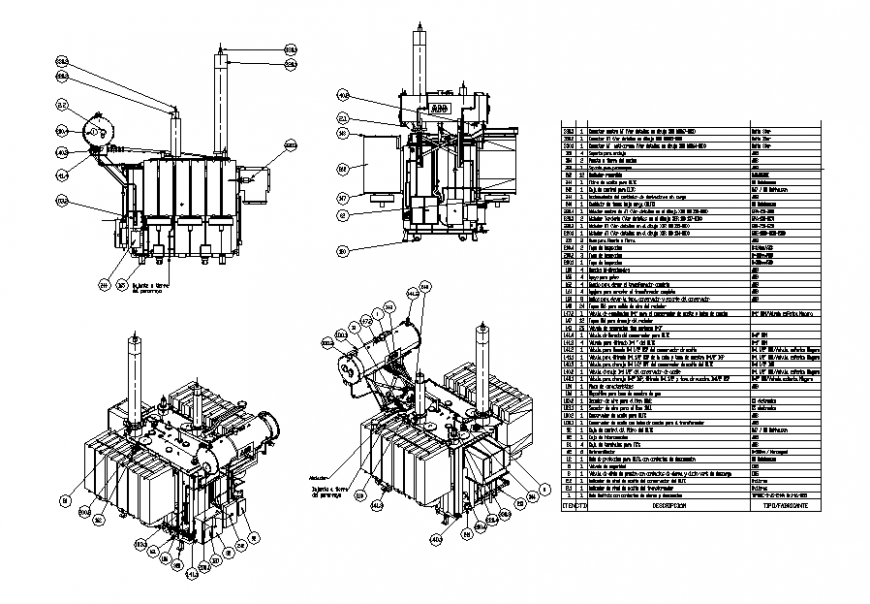

Transformer machine electrical system cad drawing details that includes a detailed view of Neutral connector AT (See details in drawing XBR 100167-BDX), BT connector (See details in drawing XBR 100165-BDX), AT connector anti-corona (See details in drawing XBR 100164-BDX), Support for anchoring, Activation of the tap changer without load
On-load tap changer (OLTC), Neutral AT isolator (See details in drawing XBR 100 158-BDX), Tertiary Insulator (See details in drawing XBR 100 157-BDX) and much more of machine details.
