PVC Ground Pipeline and Earthing Pit Detail 1:20 Scale CAD Drawing

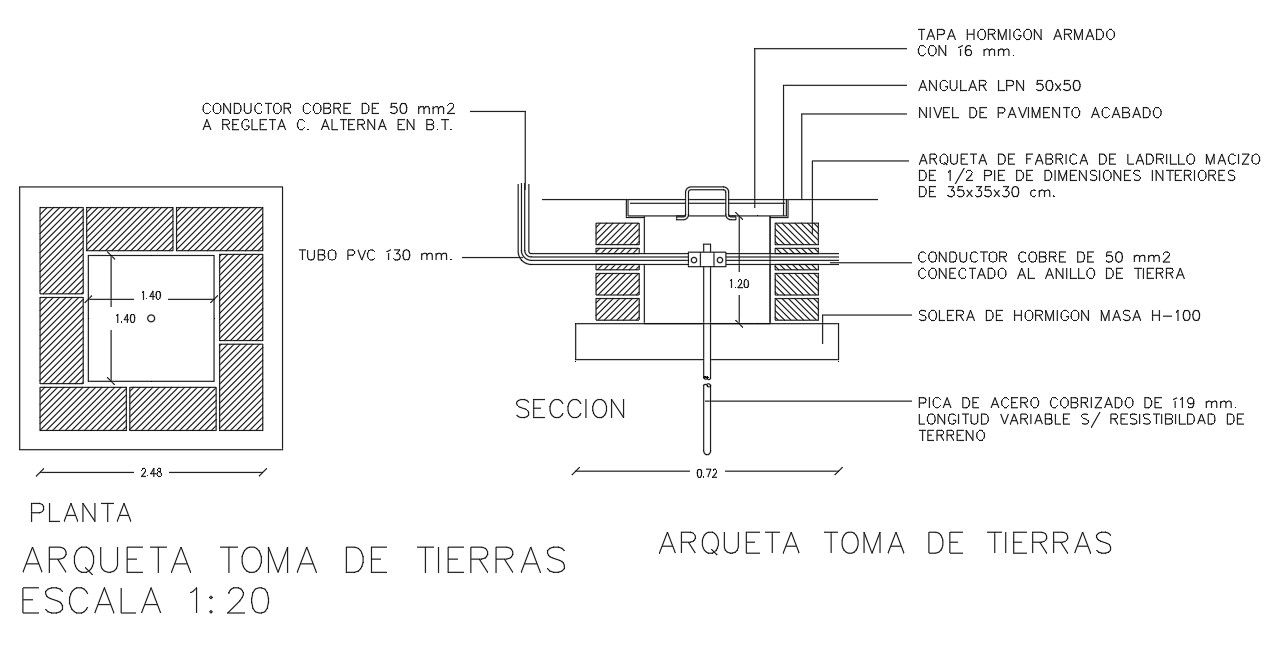

This PVC Pipe Project Plan AutoCAD DWG file presents detailed technical drawings of ground pipeline and earthing pit construction prepared at a 1:20 scale. The layout includes plan and sectional views of the earthing chamber with internal dimensions of approximately 1.40m × 1.40m and an overall outer size of about 2.48m. The drawing illustrates 130mm diameter PVC pipe routing, 50mm² copper conductor connections, grounding rod placement, concrete base thickness, brick masonry structure, and reinforced concrete cover slab. All components are clearly labeled to support accurate installation and long-term system performance.

This CAD drawing is designed for architects, civil engineers, electrical consultants, builders, and drafting professionals who require reliable underground pipe and grounding system details. The file supports compatibility with AutoCAD, Revit, 3ds Max, and SketchUp platforms for seamless design coordination. It helps in planning safe electrical earthing systems, proper drainage connections, and protected underground routing. By using this DWG file, professionals can improve construction accuracy, ensure regulatory compliance, and reduce site execution errors through standardized measurements and clear construction documentation.
