Elevation and section commercial building plan layout file

Description

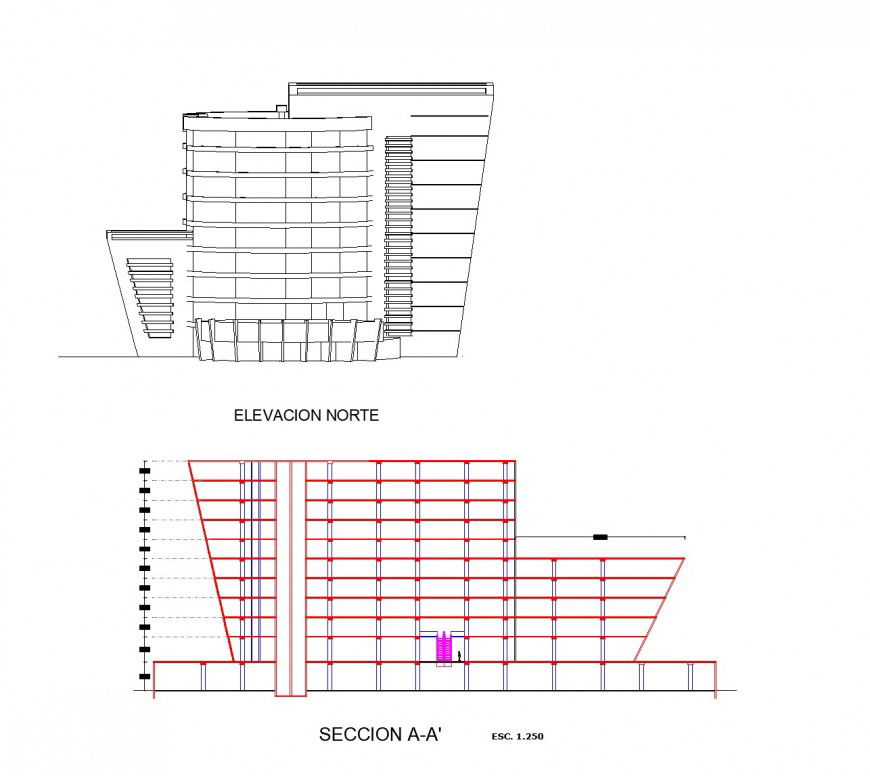

Elevation and section commercia, section A-A’ detail, north side elevation detail, centre line plan detail, l building plan layout filehidden line detail, hatching detail, scale 1:250 detail, stair detail, galss detail, etc.

File Type: DWG File ID: 128793
