Single Family Home AutoCAD DWG File with Floor Plan and Roof Layout

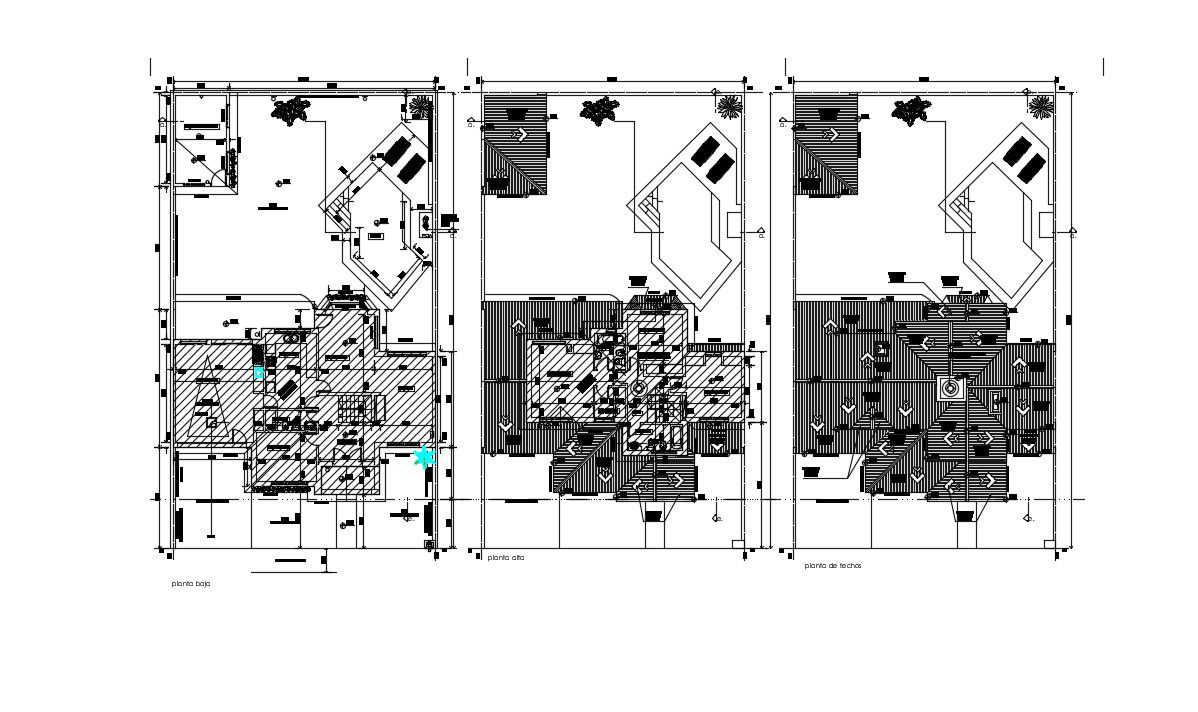

This single-family home AutoCAD DWG File includes complete architectural and structural drawings for a modern residential house. The file contains detailed ground floor, first floor, and roof layout plans showing bedroom arrangement, living room layout, kitchen area, staircase, circulation spaces, and service zones. It also presents wooden structure details, wall dimensions, column placement, door and window openings, and furniture layout. Accurate measurements for room sizes, floor levels, roof slopes, and construction thickness are clearly marked with professional technical annotations and proper scaling.

This DWG file is suitable for architects, civil engineers, interior designers, builders, and students working on residential planning and construction projects. It can be edited and customized using AutoCAD, 3D Max, Revit, and Google SketchUp for further design development and visualization. The drawing helps users understand space utilization, structural coordination, roofing layout, and interior planning concepts. With organized layers and precise drafting standards, this single-family home detail file supports reliable documentation, estimation, and site execution for housing projects.
