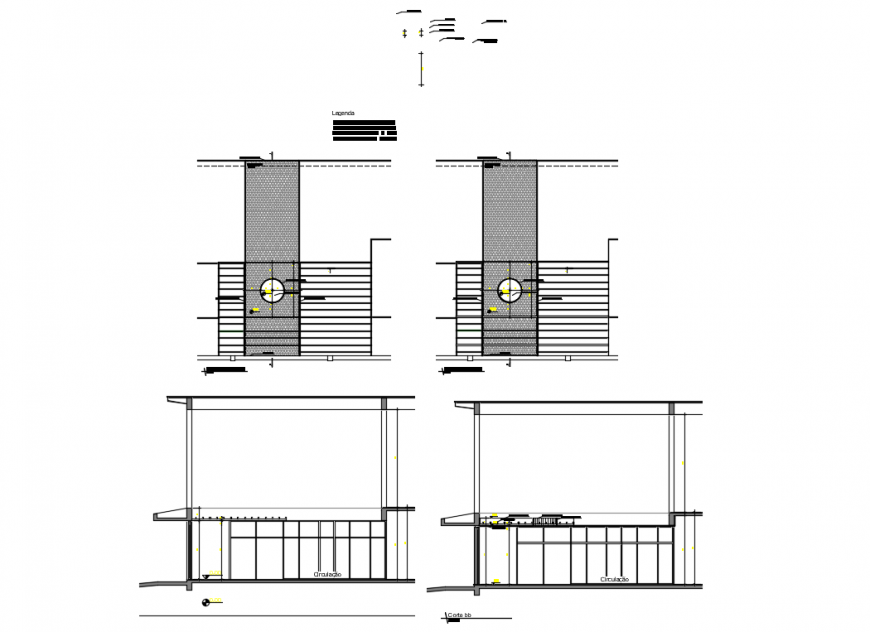

Ceiling plaster details for commercial center dwg file


Description

Ceiling plaster details for commercial center that includes a detailed view of column composed of laminated profiles u, support reinforcement of pre-molded slab, pre-molded slabs of h., steel pedestals, baldosones 60 cm. * 60 cm, galvanized steel tensioners, two-dimensional structure of profiles t and c of 100mm., steel plate anchor and much more of ceiling details.




File Type: DWG File ID: 129045

Uploaded by:


Eiz Luna
New-Zealand
