Construction architectural details of reflected ceiling dwg file


Description

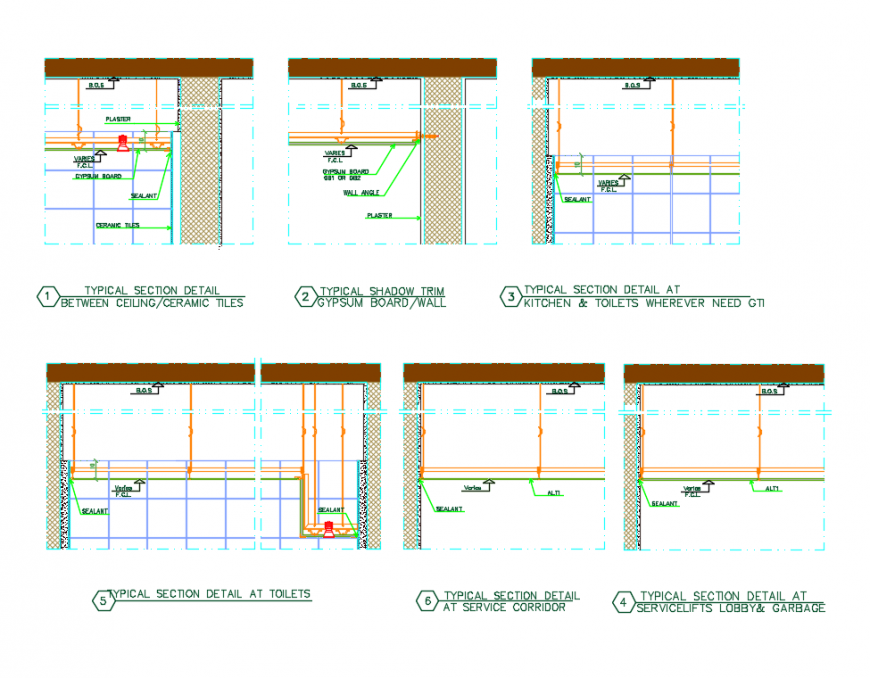

Construction architectural details of house ceiling that includes a detailed view of typical section details between ceiling ceramic tiles, typical shadow trim gypsum board wall, typica; section details at kitchen and toilets wherevr need, servicelifts lobby and garbage, toiles. service corridor and much more of ceiling details.




File Type: DWG File ID: 129134
