Residential Society Master Plan with Parking Park and Housing Layout

Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

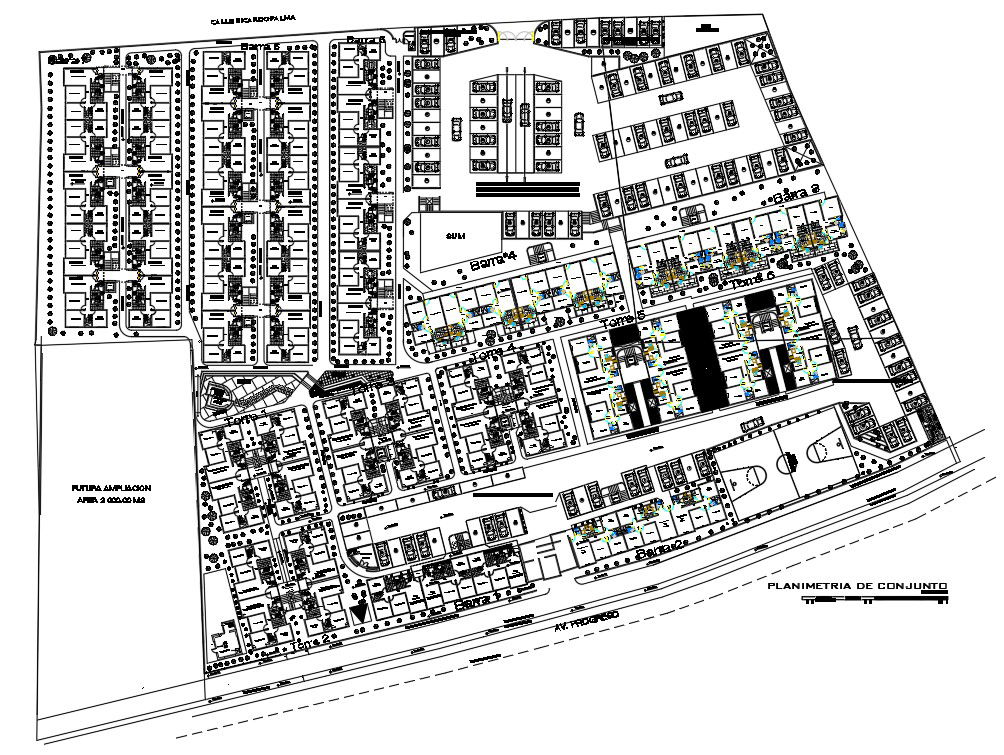

This residential society master plan drawing is prepared in AutoCAD DWG format and presents a complete site planning layout for housing development projects. The drawing includes organized residential blocks, internal road networks, educational area zoning, parking spaces, landscaped parks, and community facilities. It also shows plot divisions, building footprints, circulation paths, entry and exit routes, and future expansion zones. Clear dimension lines, boundary markings, setback distances, and road widths are provided to support accurate land utilization and construction planning. This layout plan helps architects, civil engineers, and planners visualize overall project distribution and manage infrastructure development efficiently.
The society planning drawing also contains designated areas for vehicle parking, open green spaces, pedestrian walkways, and utility corridors. Detailed block arrangements, row housing clusters, apartment zones, and recreational spaces are clearly marked with scale references. Provision for future extension is included to allow phased development and capacity expansion. The DWG file supports precise measurement, easy modification, and high-resolution printing for professional presentations. This society planning layout is compatible with AutoCAD, Revit, 3ds Max, and SketchUp software, making it suitable for technical design, approval submissions, and construction documentation.
File Type:
Autocad
File Size:
1.2 MB
Category::
Urban Design
Sub Category::
Town Design And Planning
type:
Gold
