Simple House Layout Drawing with Living Kitchen and Bedroom Plan

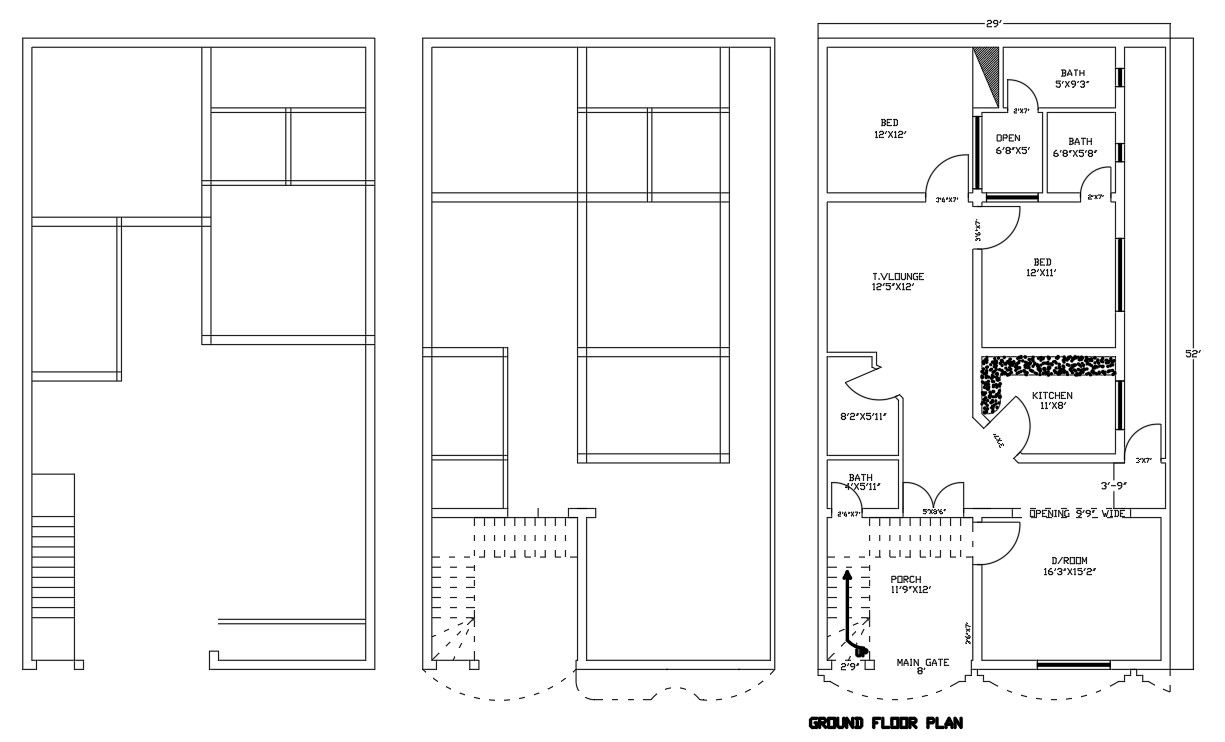

This simple house layout drawing presents a compact residential planning solution with clearly defined spaces, including a TV lounge, a living room, a dining area, a kitchen, bedrooms, a bathroom, and a toilet. The ground floor plan is designed within an approximate plot size of 29 ft x 52 ft, offering balanced room distribution and efficient circulation. The living and TV lounge area measures around 12.5 ft x 12 ft, while bedrooms are planned with standard dimensions of about 12 ft x 11 ft and 12 ft x 12 ft for comfortable use. The kitchen area of nearly 11 ft x 8 ft provides sufficient workspace and ventilation. External walls of 230 mm and internal walls of 115 mm are maintained for structural stability and space optimization. All dimensions and layout details are prepared in AutoCAD format for professional drafting and modification.
