Residential House Layout Drawing with Elevation Section and Room Plan

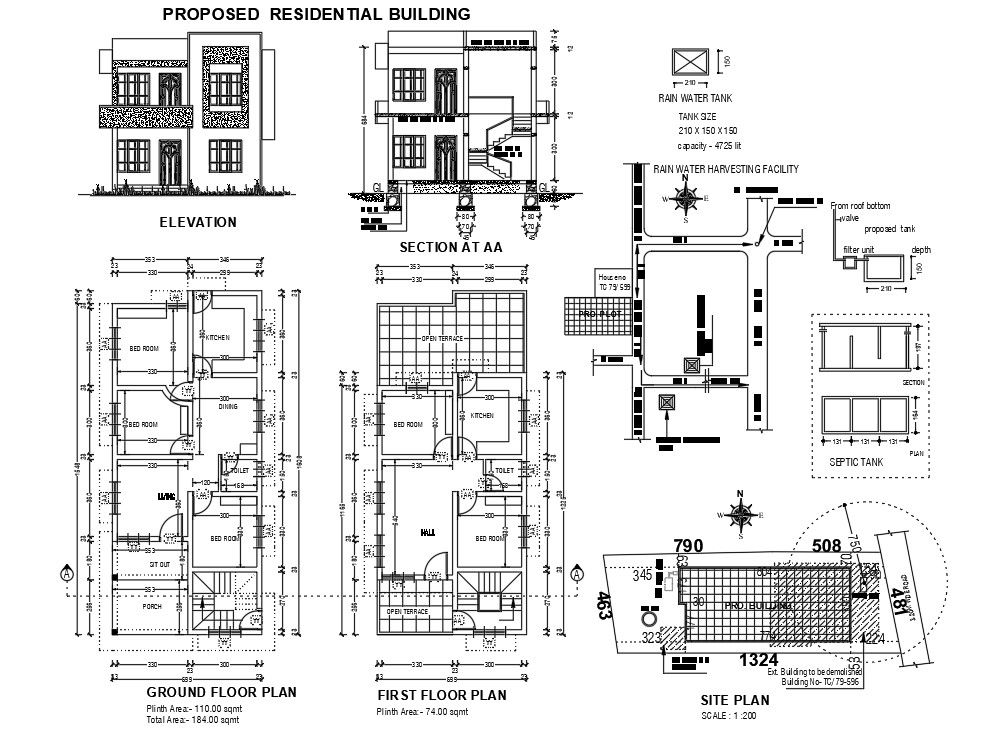

This residential house design drawing provides a complete architectural planning solution with a detailed layout plan, elevation view, section drawing, and site development information. The drawing includes well-organized spaces such as the living room, dining area, kitchen, bedrooms, toilets, staircase, and circulation passages. The ground floor plan covers an approximate plinth area of 110.00 square meters, while the first floor plan measures around 74.00 square meters, ensuring balanced space utilization. External walls of 230 mm and internal partitions of 115 mm are maintained for structural stability. Floor-to-floor height of nearly 3000 mm supports proper ventilation and daylight entry. All dimensions and construction details are prepared in AutoCAD format for professional drafting and execution.
