Modern Main Gate Design Drawing with Steel Structure and Sections

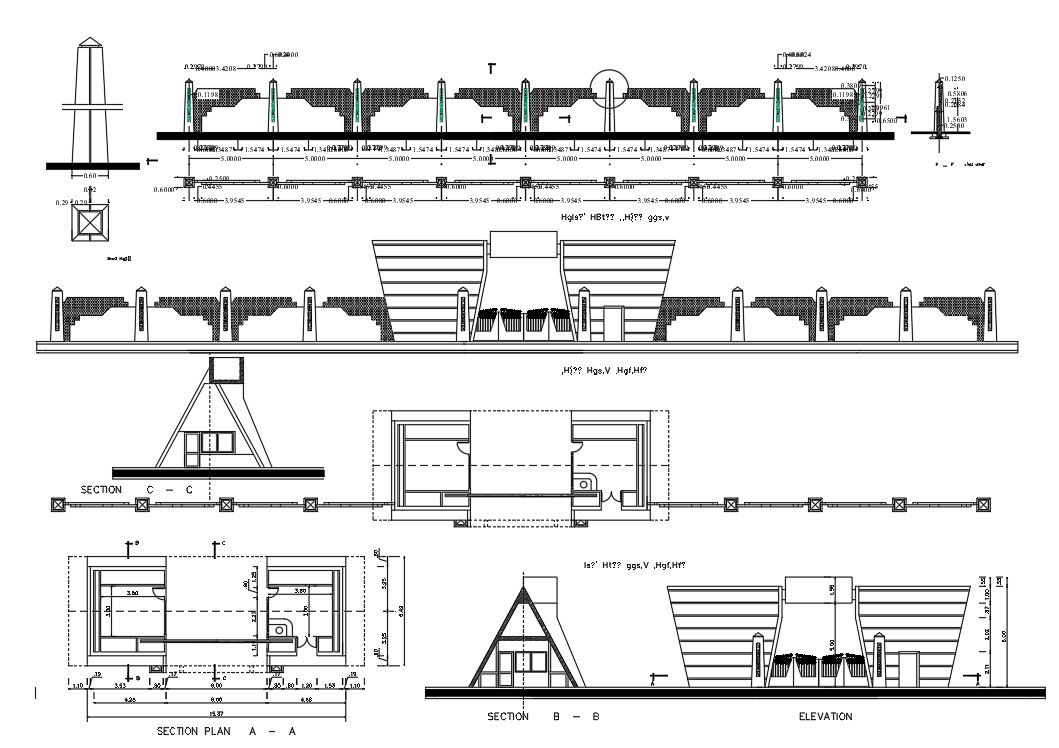

This modern main gate design drawing provides a complete structural and architectural detailing solution with clearly defined elevation, section, and construction details. The gate is designed using stainless steel material with heavy-duty support members for long-term durability and security. The layout includes vertical and horizontal steel frames, decorative panels, and reinforced base plates for stability. The overall gate span is approximately 5000 mm with support pillar spacing of nearly 1500 mm, ensuring smooth operation and balanced load distribution. A foundation depth of around 900 mm and a base width of 600 mm are indicated for proper installation. All dimensions and fabrication details are drafted in AutoCAD format for accurate manufacturing and site execution.
