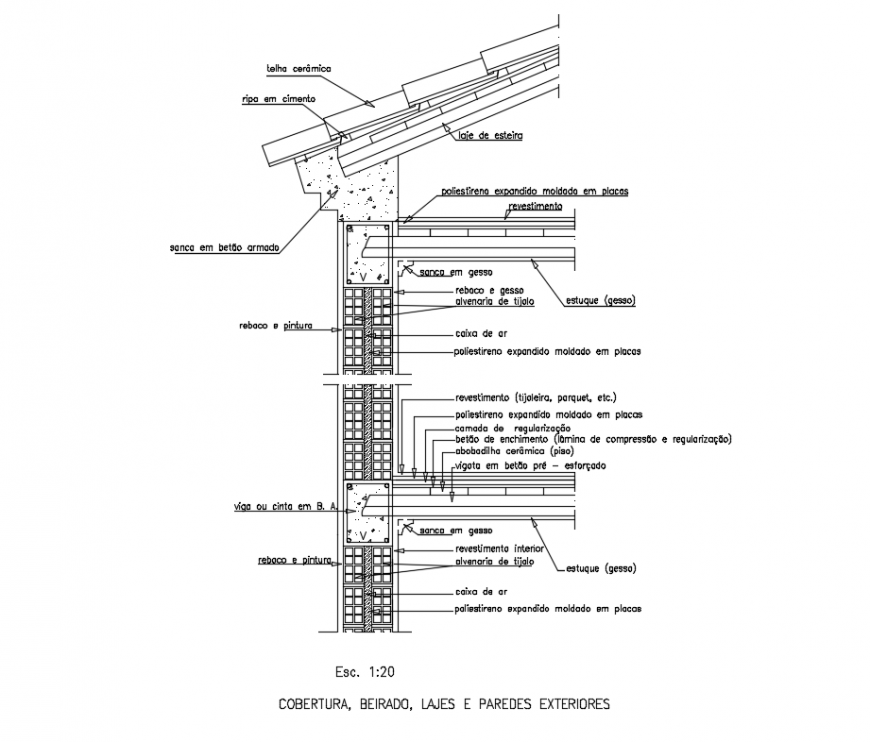

Wall covered mezzanine constructive and sectional details dwg file


Description

Wall covered mezzanine constructive and sectional details that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type 1 and 2, soil burried wall closure type 1 and 2, exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, 8cm, plaster plastering 1cm, Concrete wall 15cm and much more of section details.




File Type: DWG File ID: 131316

Uploaded by:


Eiz Luna
New-Zealand
