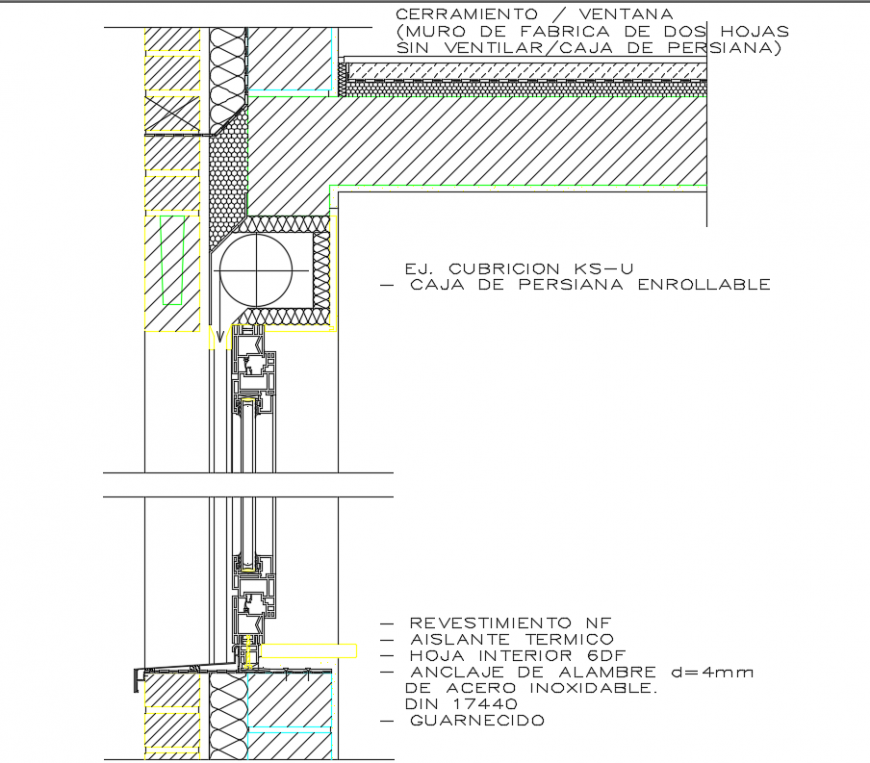

Mezzanine floor section wall window roller blind details dwg file


Description

Mezzanine floor section wall window roller blind details that includes a detailed view of closing window, wall of factory of two leaves, no ventilation, shutter box, cubricion, enroll shutter box, coating, thermal ilusion, inside sheet, wire anchor, stainless steel and much more of wall construction details.




File Type: DWG File ID: 131340

Uploaded by:


Eiz Luna
New-Zealand
