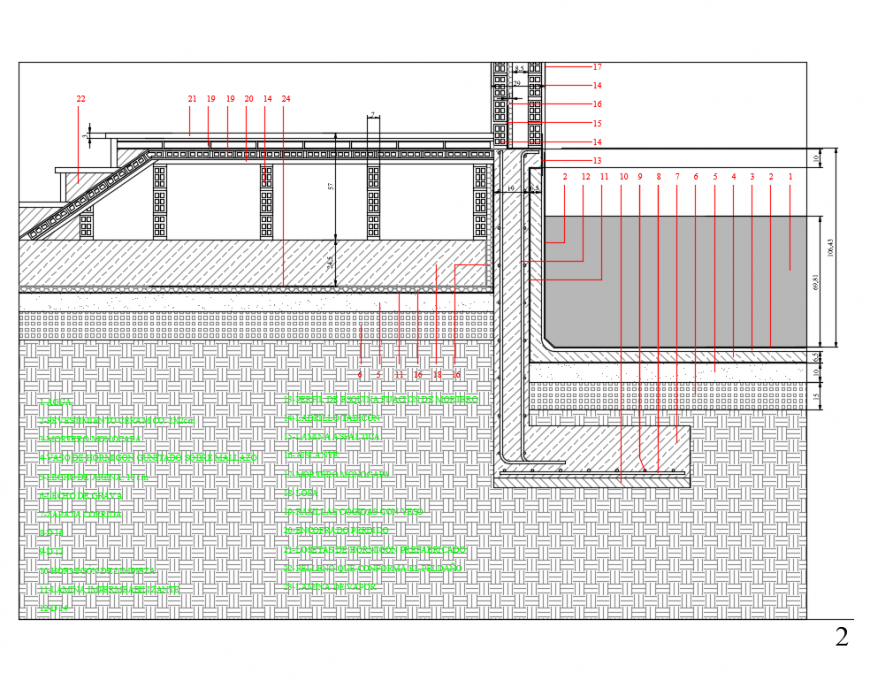

House building section facade with technical specifications dwg file


Description

House building section facade with technical specifications that includes a detailed view of flooring view, wall construction, balcony view, doors and windows view, memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type 1 and 2, soil  burried wall closure type 1 and 2, exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of building section.




File Type: DWG File ID: 131575

Uploaded by:


Eiz Luna
New-Zealand
