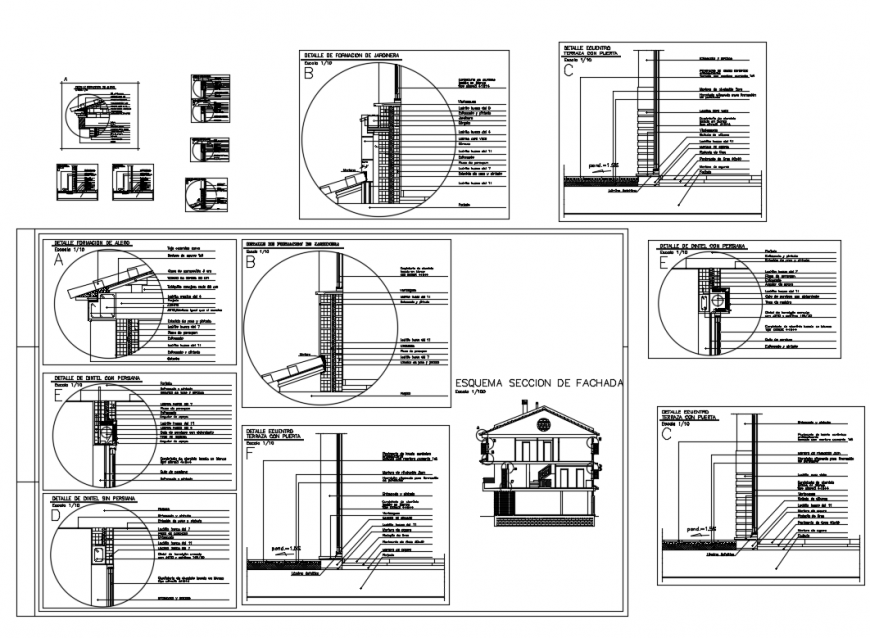

Lintel details of windows and eaves formation constructive details dwg file

Lintel details of windows and eaves formation constructive details that includes a detailed view of sheet cover hºgº nº 24, type "au-l1" or "trafitubo" or similar green color incorporated on metallic structure of dimensions according to calculation, valance and ceiling of eaves sheet hºgº nº 24 type "au-l1" or "trafitubo" or similar green color incorporated on metallic structure of dimensions according to calculation, horizontal reinforcement in all the walls 0.15m x 0.20m 4fe10 - estr. 1fe6 c / 0,15m, fill metal frames with cement prior to laying, plaster exterior plaster impermegle plaster thick combed fine plaster 1: 1/8: 2 - finished to the felt and much more of details.
