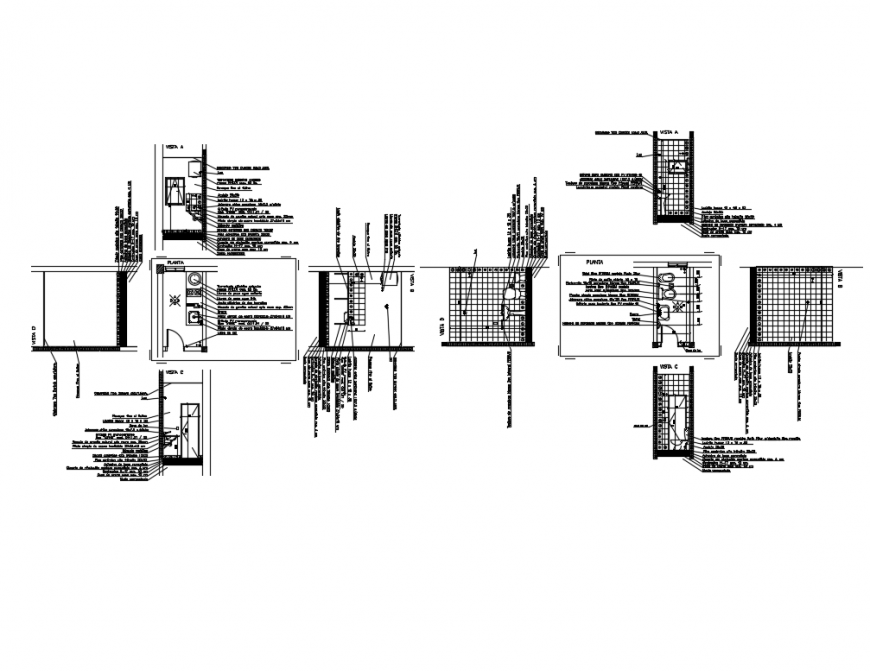

Building bathrooms constructive and sectional details dwg file


Description

Building bathrooms constructive and sectional details that includes a detailed view of Durlock type ceiling lamp: 1.6cm. Light, Hanging electric thermotant RHEEM brand cap. 60 lts., Porcelain girl soap dish 15x7.5 s / sinkta, Faucet FV monocomando, Electric thermostat hung, Hot water pass-through taps, Cold water pass-through taps, Bidet type FERRUM model Fenix Pilar, Open patio sink 15 x 15, 15x15 white porcelain holder FERRUM type, White porcelain simple hanger type FERRUM, Porcelain girl soap holder 15x7.5 type, faucet for lavatory type FV model 61 and much more of bathroom details.




File Type: DWG File ID: 132306

Uploaded by:


Eiz Luna
New-Zealand
