Hand Wash Basin CAD Drawing With Plan Elevation and Dimensions

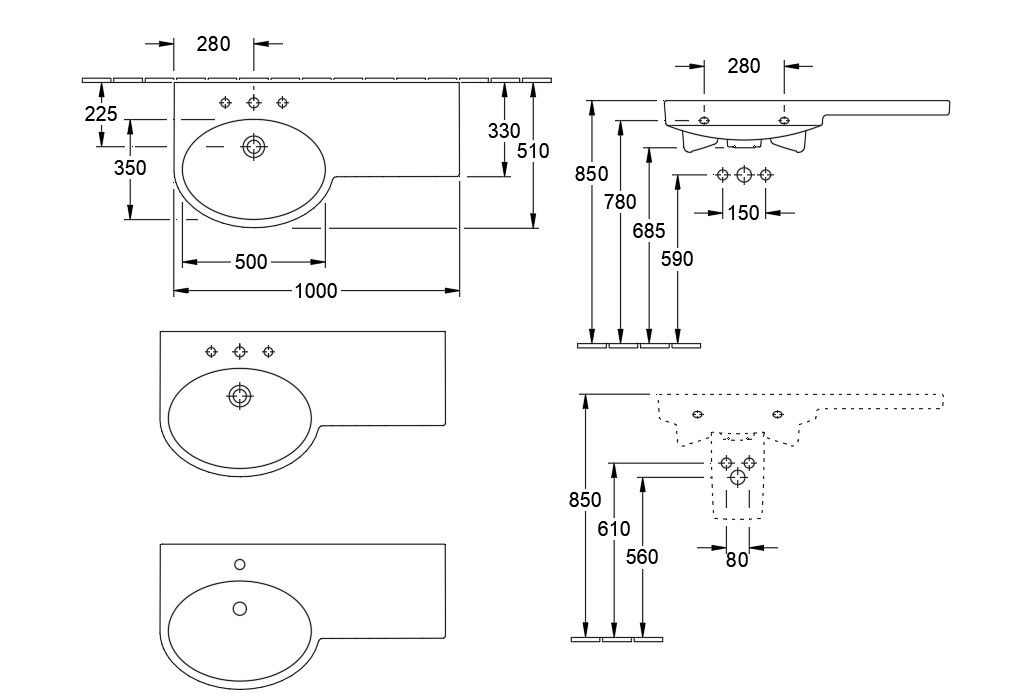

This Hand Wash Basin CAD Drawing is a detailed AutoCAD DWG file prepared for residential and commercial sanitary planning. The drawing includes clearly defined plans, front elevation, and side elevation views with precise measurements for accurate installation. The basin layout shows an overall counter length of 1000 mm with a bowl width of 500 mm and a standard projection of 280 mm. Vertical dimensions are carefully marked, including a basin installation height of 850 mm from floor level and internal support clearances of 590 mm, 685 mm, and 780 mm. Tap hole positions, drainage outlets, and fixing points are accurately detailed to support proper plumbing coordination.
