This detailed methanol and toluene storage tank fabrication drawing provides complete construction information for a medium-duty cylindrical vessel designed with a shell size of 6150 mm in length and 3150 mm internal diameter. The layout includes full ASME Sec VIII Div 1 compliance data, 10–12 mm shell thickness, stiffening ring placement, dish-end dimensions, nozzle locations, support details, and saddle foundation requirements. The drawing clearly illustrates nozzle orientation (N1–N12), 600 NB manholes, M24 bolting details, vent openings, lifting lugs, earthing cleats, and structural connections for safe installation. Every componentfrom counterweight section to impingement plate specifications, is represented with exact measurements for accurate fabrication.

This layout also includes a complete bill of materials with SA 516 Grade 70 and IS 2062 Grade A material specifications. The tank’s hydrotest pressure, design temperature, corrosion allowance, and working load parameters are highlighted for engineering validation. Detailed sectional elevations, welding notes, support plate dimensions, saddle spacing, and reinforcement diagrams ensure precision for manufacturing and site erection teams. Ideal for architects, civil engineers, plant designers, and construction professionals, this file supports efficient project execution and ensures compliance with industrial tank installation standards.

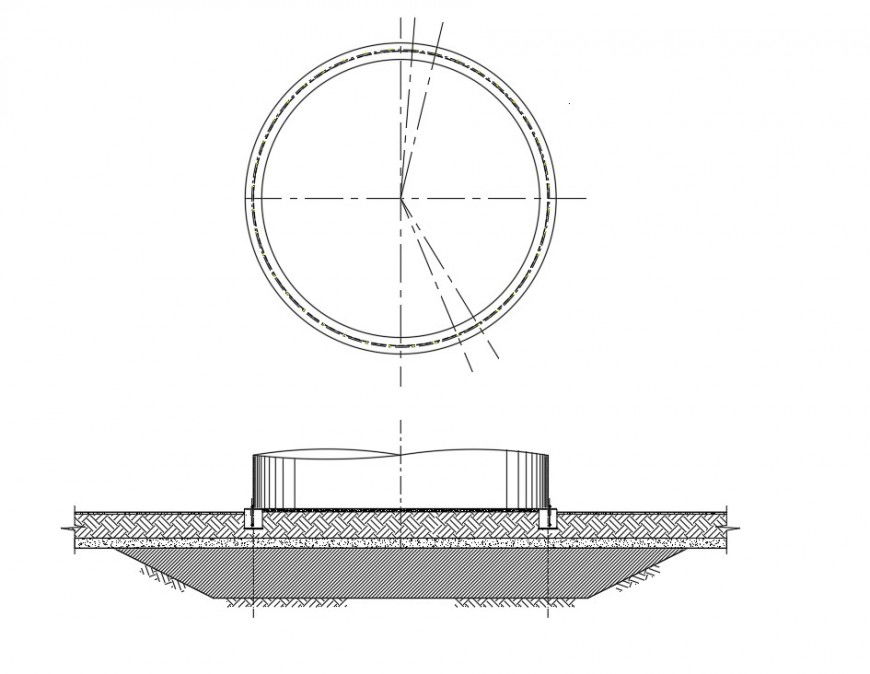

Foundation plan for storage tank plan dwg file

Eiz

Description

DWG

400 KB

Construction

Footing Details
