Standing Wash Basin CAD Drawing With Plan Elevation and Details

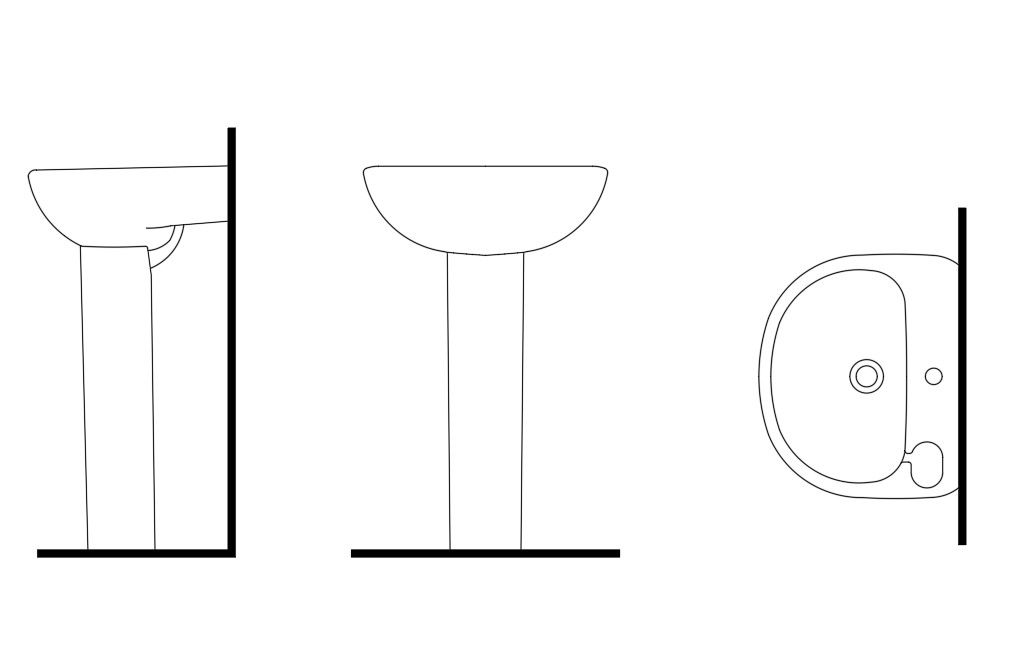

This Standing Wash Basin CAD Drawing is a professionally drafted AutoCAD DWG file created for residential and commercial bathroom planning. The drawing includes a complete plan view, front elevation, and side elevation detailing of a pedestal-mounted wash basin. It clearly represents basin bowl geometry, pedestal support alignment, wall fixing position, and floor mounting base. The layout shows accurate proportions for basin height, depth, and clearance from surrounding walls to ensure proper installation and user comfort. Clean linework and standardized drafting symbols support easy interpretation and smooth integration with plumbing and architectural layouts. The drawing is suitable for modern washrooms, hotel bathrooms, and public sanitary facilities.
