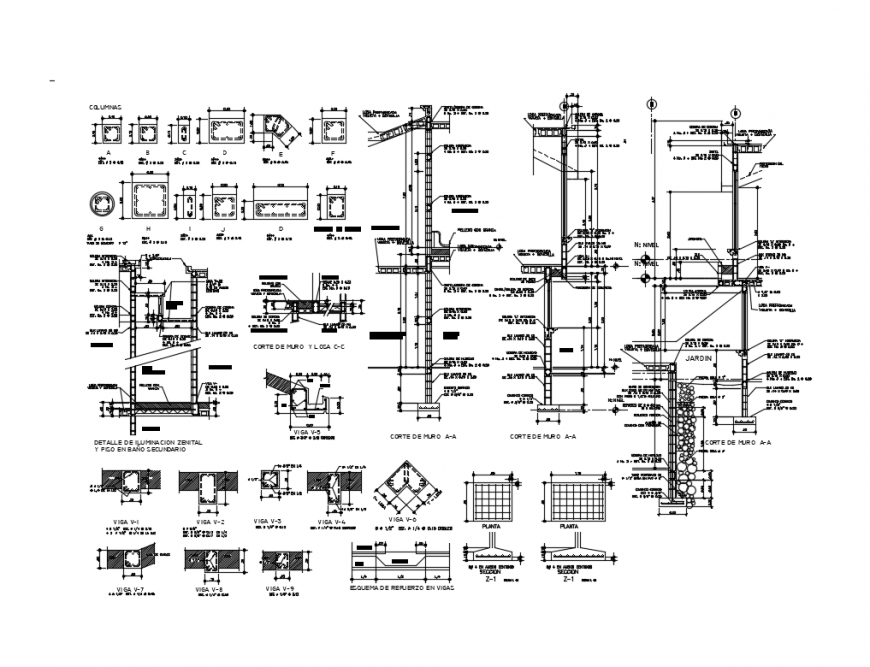

House building several constructive details with reinforced concrete dwg file


Description

House building several constructive details with reinforced concrete that includes a detailed view of Reinforced concrete parapet f'c = 250 kg / cm, Stuffed with 10cm tezontle, average thickness, Stuck with cement-sand mortar prop. 1: 5, Waterproofing based on prefabricated membrane, Wall concrete hollow block 15x20x40 smooth finish, based on granyltec acrylic resins, Hollow block wall heavy type of 15x20x40 cm, common finish, joined with sand cement mortar 1: 5, ith horizontal reinforcement and drowned castles, Galvametmonomuro panel 2.5 "and 4" thick, finished with white pre-lacquered galvanized steel sheet, finished and much more of house sectional details.





File Type: DWG File ID: 132617
