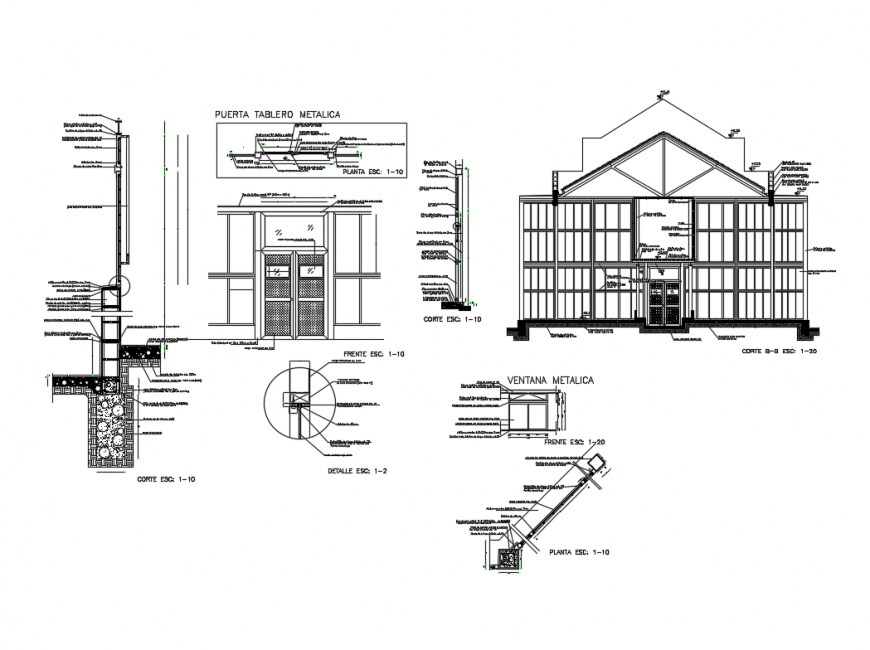

House front constructive sectional details with column and door installation dwg file


Description

House front constructive sectional details with column and door installation that includes a detailed view of door installation details of main wooden door, flooring view, wall construction, balcony view, doors and windows view, memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type 1 and 2, soil  burried wall closure type 1 and 2, exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of building section.





File Type: DWG File ID: 132709

Uploaded by:


Eiz Luna
New-Zealand
