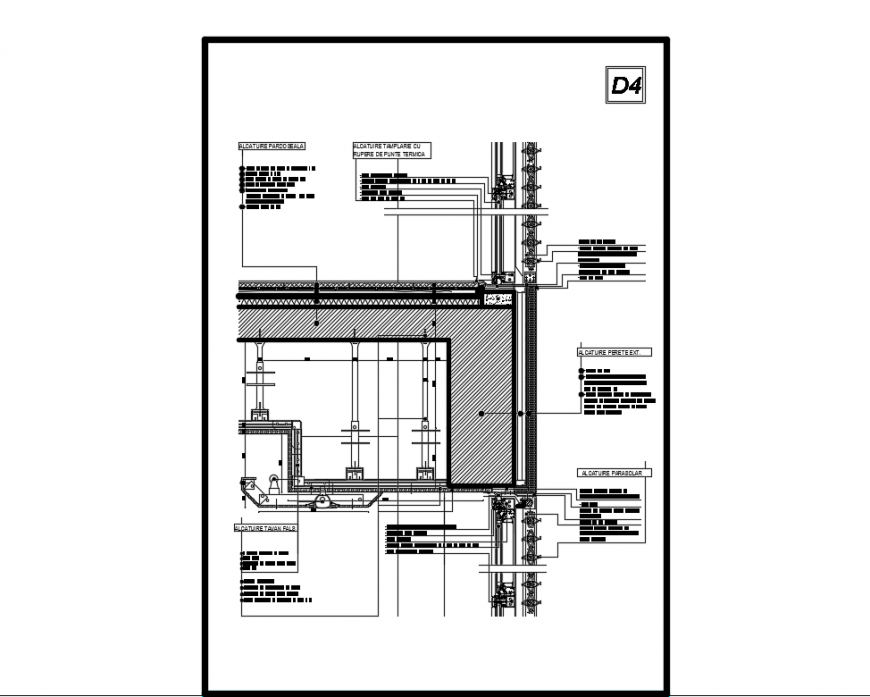

Details of finishing plywood windows finishing and constructive structure dwg file


Description

Details of finishing plywood windows finishing and constructive structure wall mounting, construction of carpentry with thermal break, travel layer of travertine plates, 2 cm, adhesive mortar, 1 cm, An army with a racquet net, 5cm, protective layer, kraft paper, Compressible insulation against impact noise from mineral wool slabs, Intermediate aluminum frame, Alum perforated oval profiles, Thermo-insulating glazing unit with 2 sheets of 24 mm glass, aluminum profile for catching the sun visor and much more of constructive details.





File Type: DWG File ID: 133235

Uploaded by:


Eiz Luna
New-Zealand
