Gear Blocks AutoCAD DWG with Straight and Helical Gears Layout

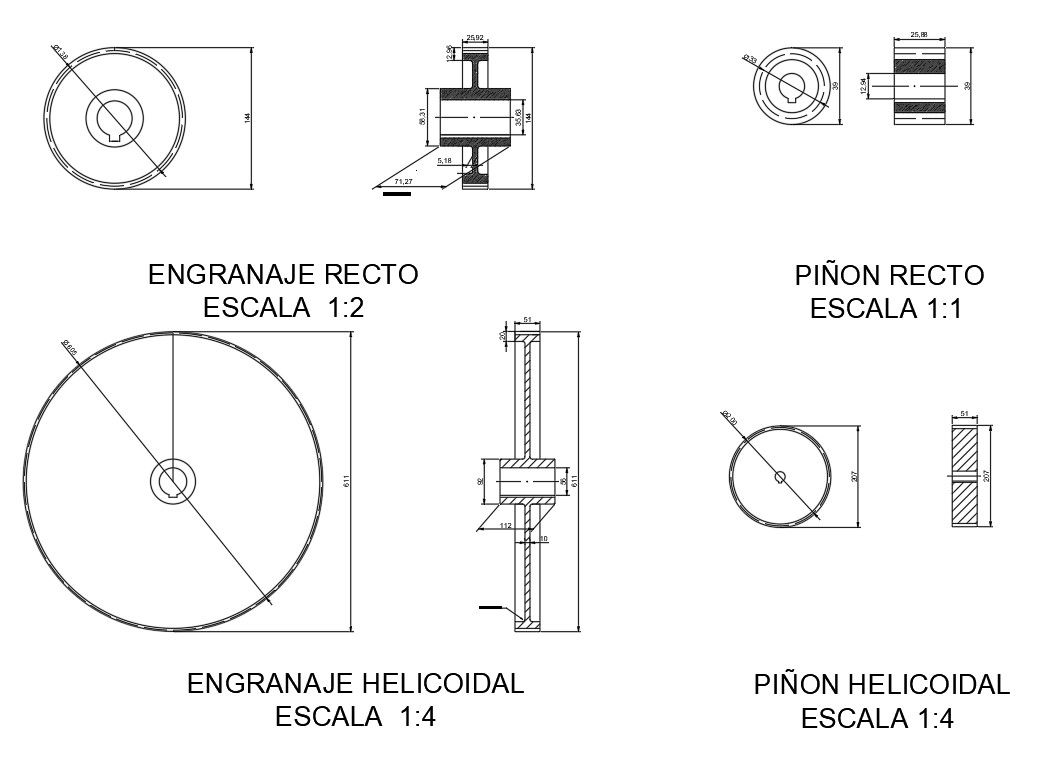

This Gear Blocks AutoCAD DWG file provides detailed drawings of mechanical gears, including straight gears, straight pinions, helical gears, and helical pinions with accurate dimensions and parameters. Each gear block is clearly labeled with measurements for pitch, diameter, thickness, and center distances, ensuring precise integration into mechanical assemblies. The DWG file includes multiple views to visualize both the side and top profiles of each gear, supporting engineers, designers, and architects in creating accurate mechanical systems. This file is ideal for mechanical design, industrial layouts, and technical documentation, providing a ready-to-use CAD solution for gears and pinions in 2D and 3D modeling projects.
