Tools CAD Blocks with Dimensioned Elevation and Isometric Views DWG

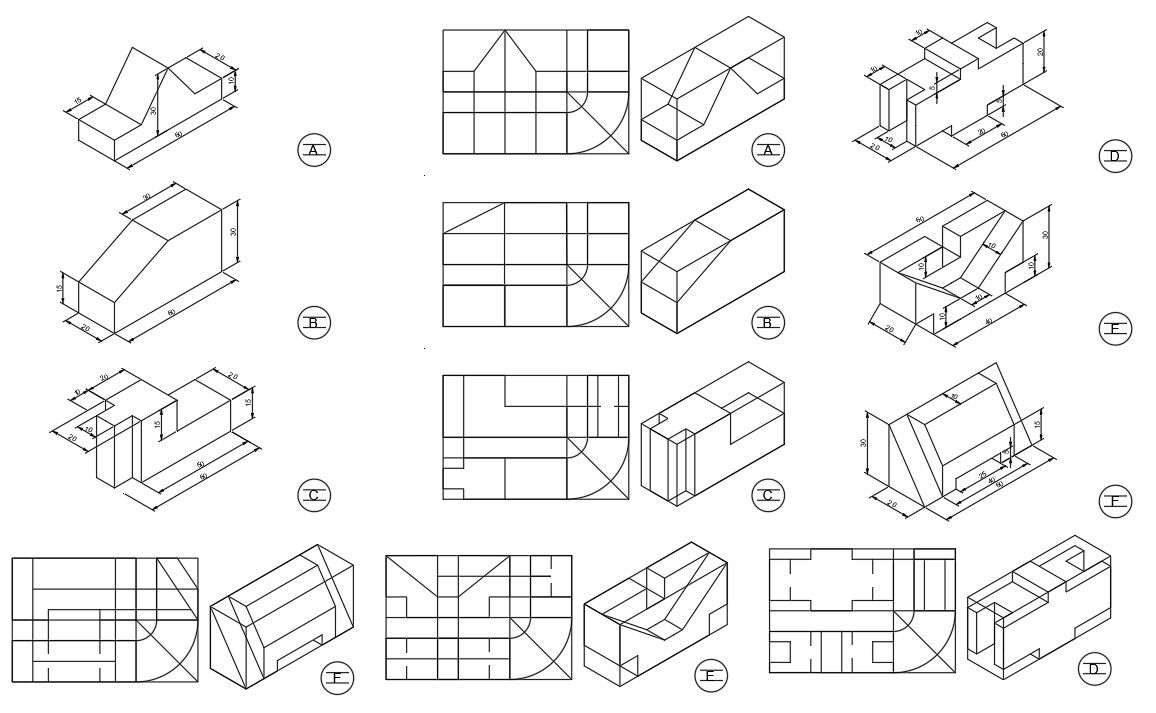

This Tools CAD Blocks DWG file presents a complete set of mechanical tool drawings with detailed front view, top view, side view, and isometric projections. The drawing includes multiple tool profiles labeled from A to F, showing stepped surfaces, inclined planes, grooves, slots, and cut-out sections. Each block is created with accurate linear dimensions such as length, width, and height measurements, including values like 20 mm, 30 mm, 50 mm, and 80 mm, ensuring precise scale and proportion. These dimensioned views help professionals understand tool geometry, edge alignment, and sectional depth for technical drafting and manufacturing layouts. This Tools CAD Blocks file saves drafting time, improves workflow efficiency, and supports high-quality construction and fabrication drawings.
