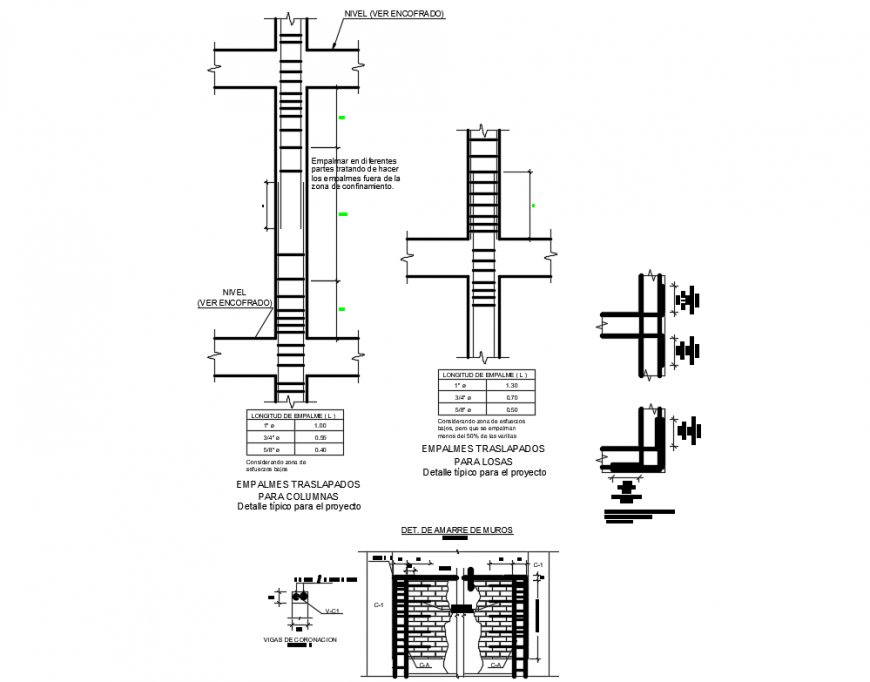

Building constructive details with wall and column dwg file


Building constructive details with wall and column that includes a detailed view of foundation plan, structure details, floor construction, beam construction, floor wise structure and constructive details with memory of materials, footings details, staircase construction and sectional details, steps details, dimensions, column view, beam construction, covers closure type  and , soil  burried wall closure type  and , exterior solera, holes, interior partition, granite veneer of the country with steel supports and much more of building construction details.

File Type: DWG File ID: 133536

Uploaded by:

Eiz Luna
