3D Machine CAD Blocks with Isometric View and Mounting Hole Details

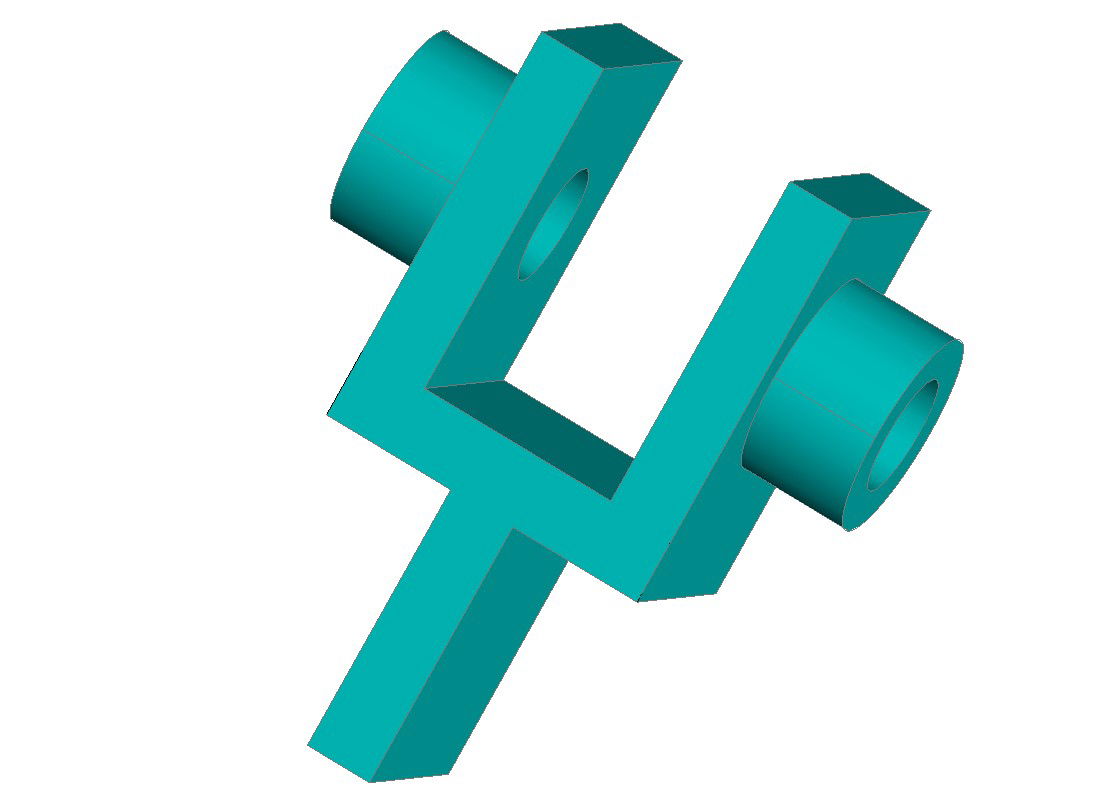

This 3D Machine CAD Blocks DWG file presents a detailed isometric model of a heavy machine support component with symmetrical arm structure and cylindrical mounting hubs. The drawing shows two circular bush housings with central through holes connected by a rigid angular frame. The block is designed with uniform wall thickness, smooth surface finish, and precise edge alignment. Key proportions such as hub diameter, arm width, frame thickness, and bore depth are maintained for accurate scale and mechanical compatibility. These dimensional features make the drawing suitable for machine assembly layouts, load-bearing supports, and industrial equipment connections. This file reduces modeling time, improves drafting accuracy, and enhances workflow efficiency for professional engineering and construction documentation.
