3D Nut Block CAD Drawing with Thread Detail Isometric View Design

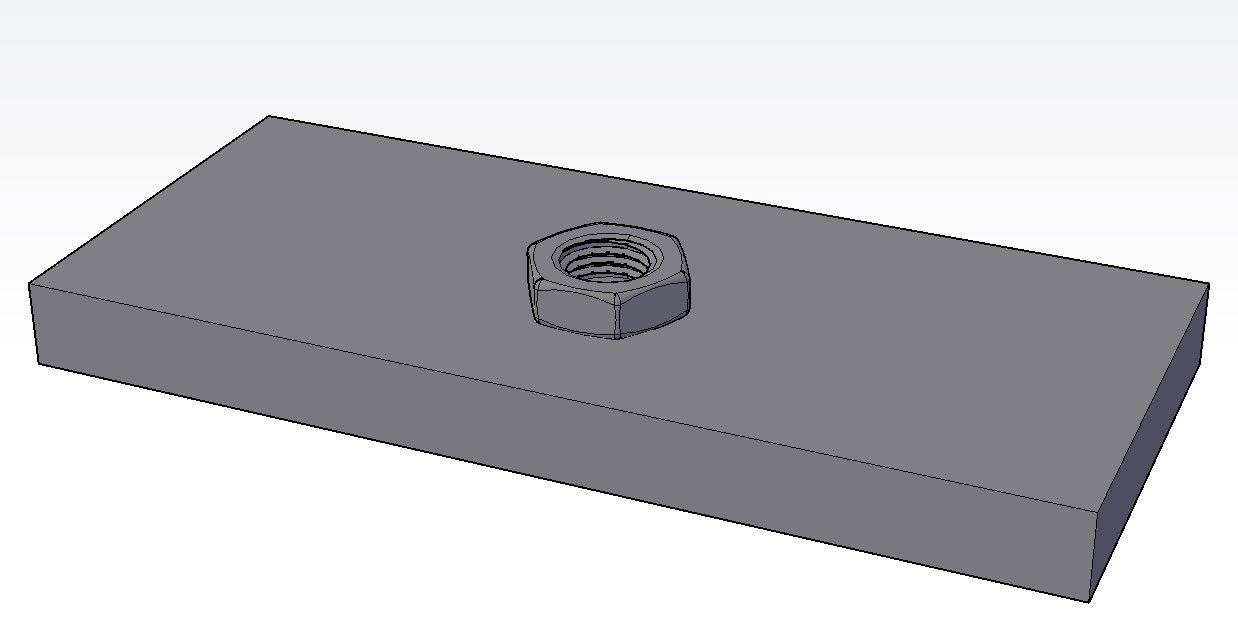

This 3D Nut Block CAD Drawing DWG file presents a detailed isometric model of a hexagonal nut mounted on a rectangular base plate. The drawing clearly shows the external hex profile, internal threaded bore, flat surfaces, and proportional edge geometry. The rectangular base block provides structural support representation, making the model suitable for mechanical assembly layouts and fastening detail drawings. The nut is modeled with accurate thread depth and inner bore diameter, ensuring proper scale for industrial and fabrication use. Standard proportions such as nut thickness, hex face width, and base plate length and width are maintained for dimensional consistency in engineering projects.
