3D Machinery Tool CAD Block with Pin Joint and Isometric View

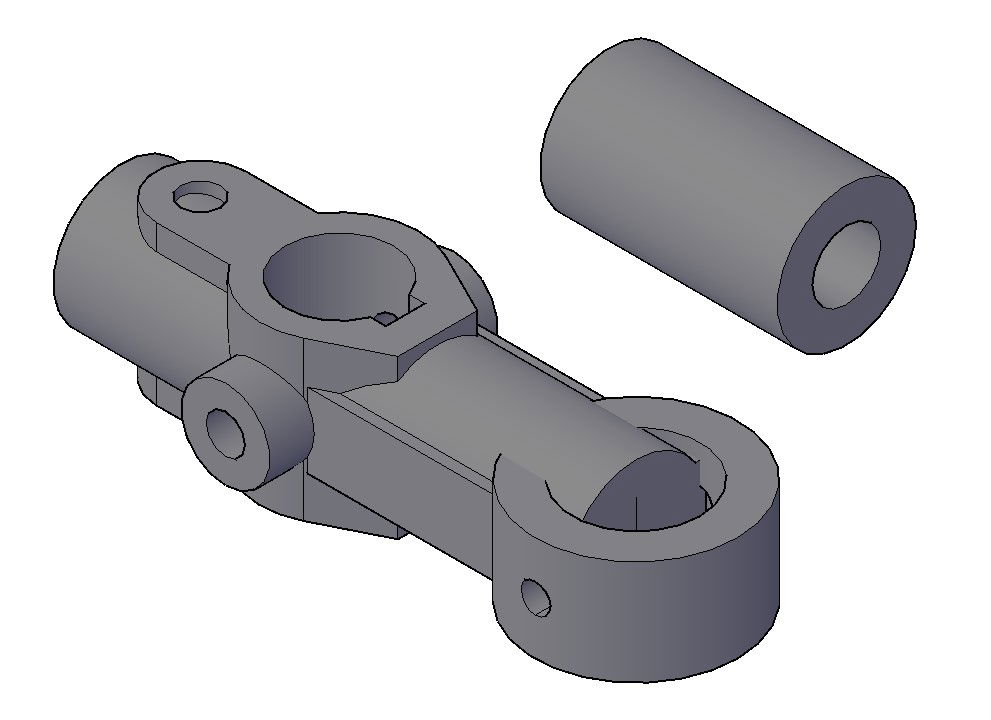

This 3D Machinery Tool CAD Block DWG file presents a detailed mechanical linkage component designed with multiple cylindrical housings and pin connection points. The model includes a central rectangular arm connected to rounded joint ends, each featuring precision-drilled holes for shaft or pin insertion. A separate cylindrical sleeve is also provided for assembly reference and alignment support. The geometry reflects balanced proportions, consistent wall thickness, and smooth edge transitions, making it suitable for machinery mechanisms, articulated joints, and industrial equipment assemblies. Key elements such as joint diameter, arm length, sleeve depth, and mounting hole spacing are maintained in accurate scale for fabrication and installation planning. By using this CAD block, professionals can streamline modeling tasks, improve dimensional consistency, and enhance the technical quality of construction and production drawings.
