AutoCAD Isometric File Design 110mm Section View Detail Model

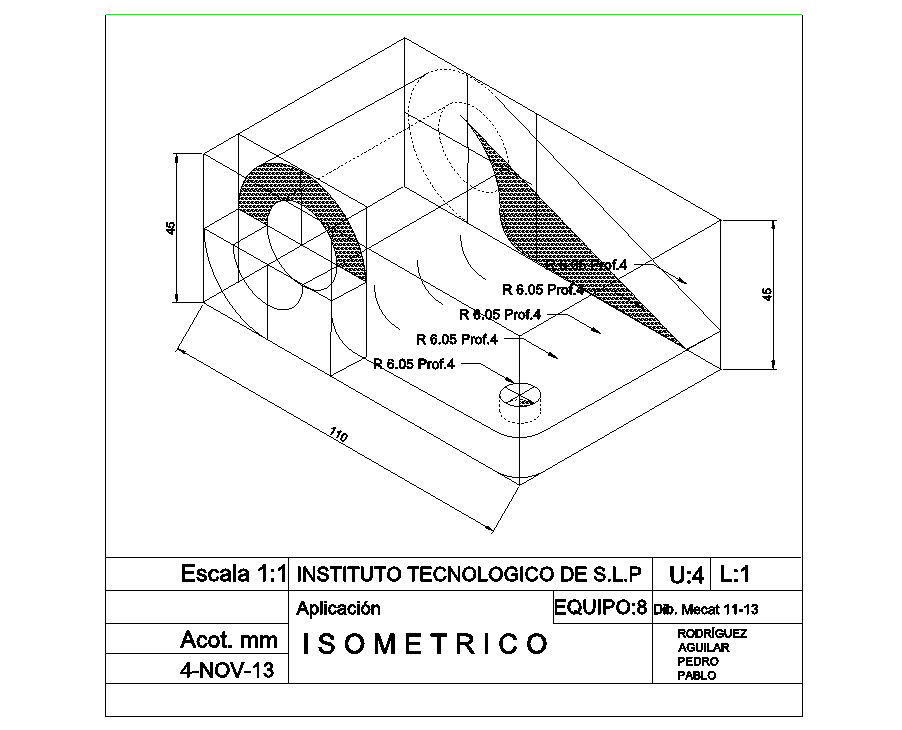

This AutoCAD Isometric File Design presents a precisely structured mechanical model with overall base length of 110mm and height of 45mm as clearly dimensioned in the drawing. The isometric section view highlights curved internal profiles marked R6.05 with profile depth references, circular cut openings, and inclined surface geometry. Hatching is applied to sectional areas to clearly define material thickness and internal cavity structure. The drawing also shows detailed dimensional annotations, radius specifications, and alignment lines to support accurate drafting and technical interpretation. The Isometric File Design model includes a base platform with rounded internal transitions, drilled hole detail, and smooth curved cut sections positioned symmetrically within the block structure.
