3D Machinery Block Model 120mm Mechanical Solid Component Detail

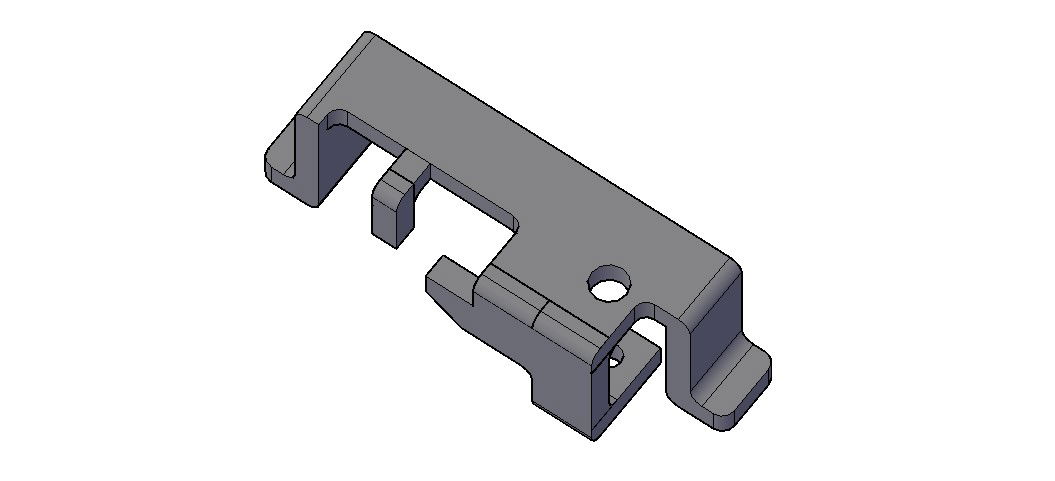

This 3D Machinery Block Model 120mm Isometric Section View presents a compact mechanical component drafted with clear geometric detailing for machinery design reference. The drawing illustrates a solid block structure with an approximate overall length of 120mm, featuring a stepped base profile and extended support ends. A circular through hole is positioned on the top surface, while internal cut sections and recessed cavities are visible within the body. The isometric presentation highlights depth, proportion, and material thickness, and sectional hatching defines cut surfaces for accurate interpretation of internal geometry and structural transitions.
