3D Screw AutoCAD DWG with M8 Hex Socket 50mm Isometric Drawing

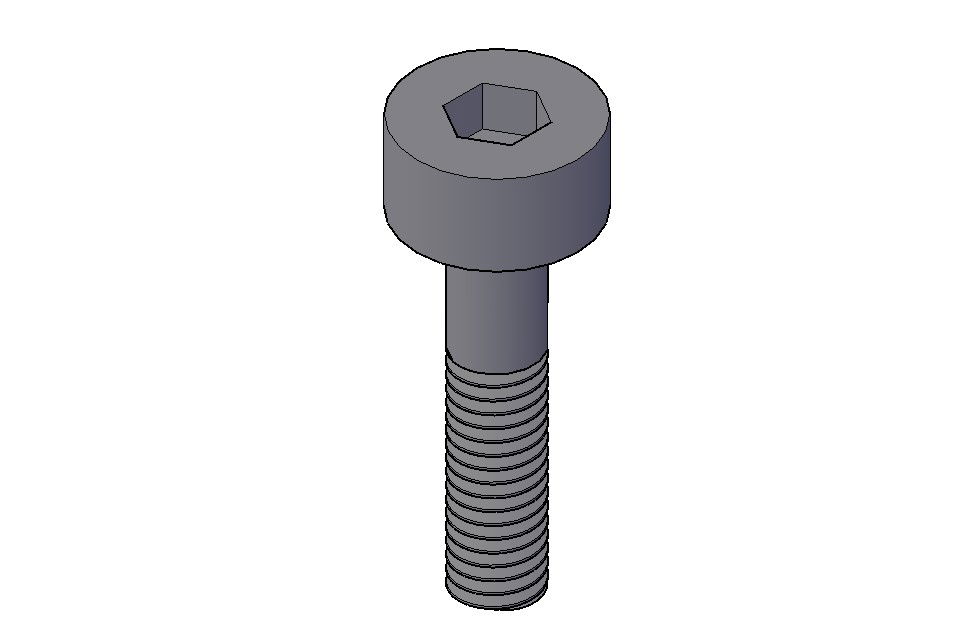

This 3D screw AutoCAD DWG file presents a detailed isometric drawing of an M8 hex socket screw with a standard length of 50 mm and a head diameter of approximately 16 mm. The model features precise external threading, smooth cylindrical shank, and a clearly defined internal hex drive suitable for Allen key fastening. The drawing includes proper line weights, realistic hatching, and accurate proportions, making it ideal for technical visualization and construction documentation. This AutoCAD DWG file supports professional use in architectural layouts, structural detailing, and mechanical assemblies where 3D screw drawing and hex socket bolt representation are essential.

Designed for compatibility with AutoCAD, 3ds Max, Revit, and SketchUp, this 3D Allen bolt CAD drawing ensures easy integration into BIM and drafting workflows. The model helps users understand fastening alignment, load distribution, and joint positioning in real projects. With clean geometry and standardized measurements, this M8 hex socket screw DWG file is useful for shop drawings, fabrication references, and product visualization.
