Modern Wooden Ceiling Design AutoCAD DWG with 600x600mm Panel Layout

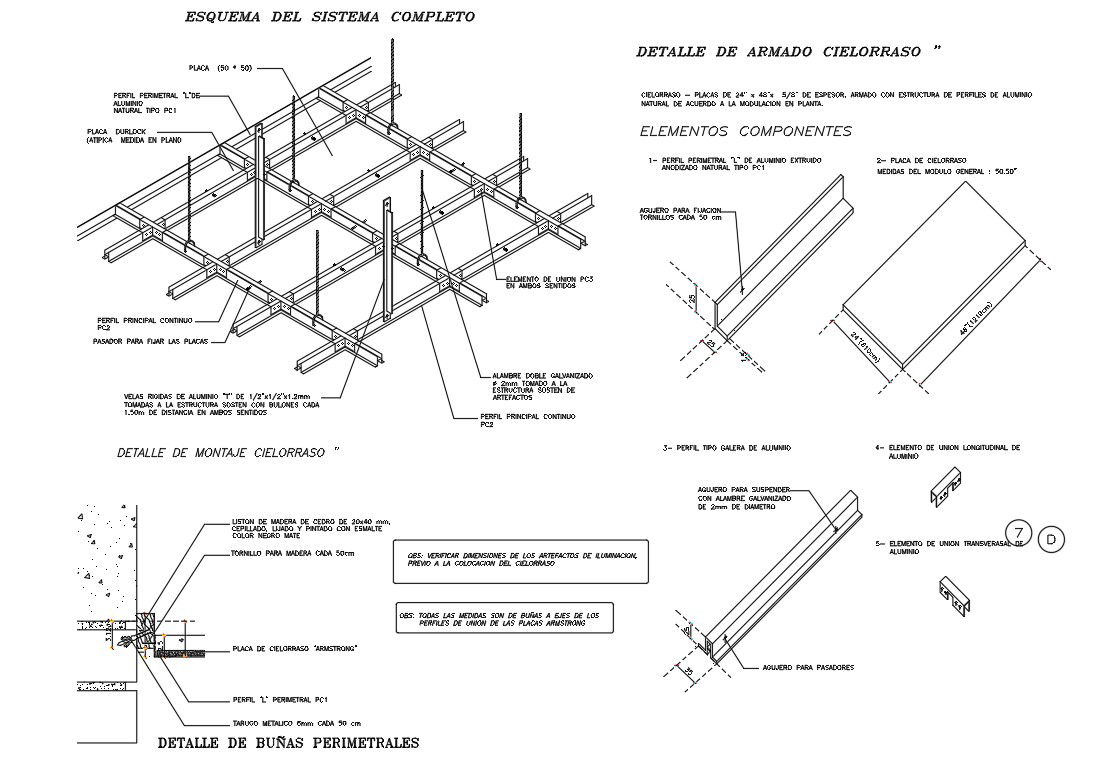

This modern wooden ceiling design AutoCAD DWG file presents a detailed suspended ceiling layout prepared with standard panel dimensions of approximately 600x600 mm. The drawing includes frame and panel details, continuous home profiles, perimeter sections, and aluminum support grids for structural stability. Main runner profiles are spaced at nearly 1200 mm centers, while cross tees are arranged at 600 mm intervals to support ceiling panels. The layout also shows suspension hangers placed at an average distance of 900 mm for load distribution. Edge trims, corner junctions, and elements of union connections are clearly illustrated with standardized symbols and hatching for technical clarity and installation accuracy. The file further features sectional views, mounting details, and perimeter fixing methods for proper alignment with walls and beams. Panel thickness is maintained at approximately 12 mm, while support channels measure around 24 mm in depth for rigidity. This AutoCAD DWG format supports smooth editing and coordination with AutoCAD, Revit, SketchUp, and 3ds Max software.
