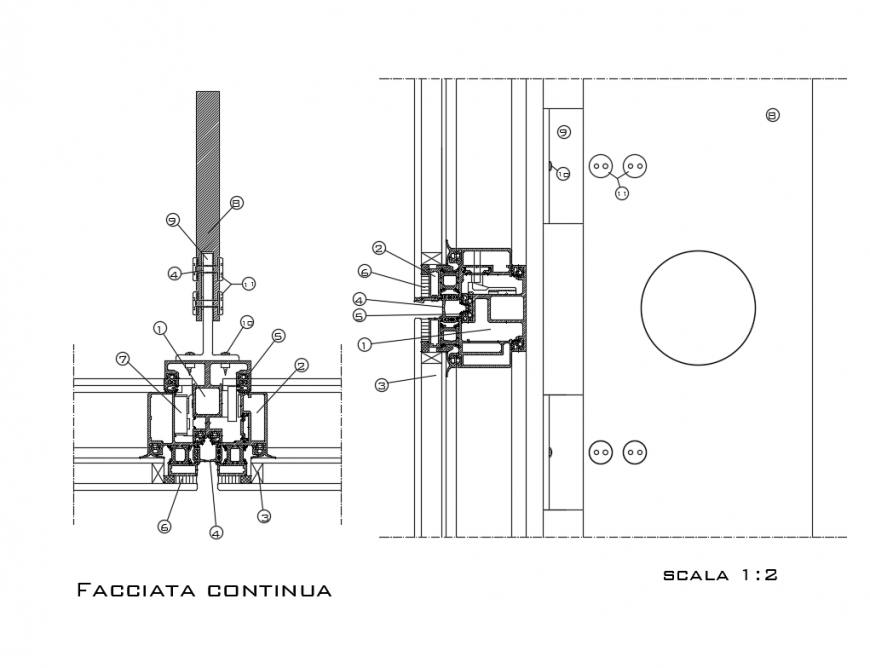

Curtain walls of house window constructive sectional details dwg file


Description

Curtain walls of house window constructive sectional details that includes a detailed view of memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of section details.memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of section details.




File Type: DWG File ID: 135114

Uploaded by:


Eiz Luna
New-Zealand
