Aluminum Flush Door Section 1 Inch Glass AutoCAD Drawing Detail Plan

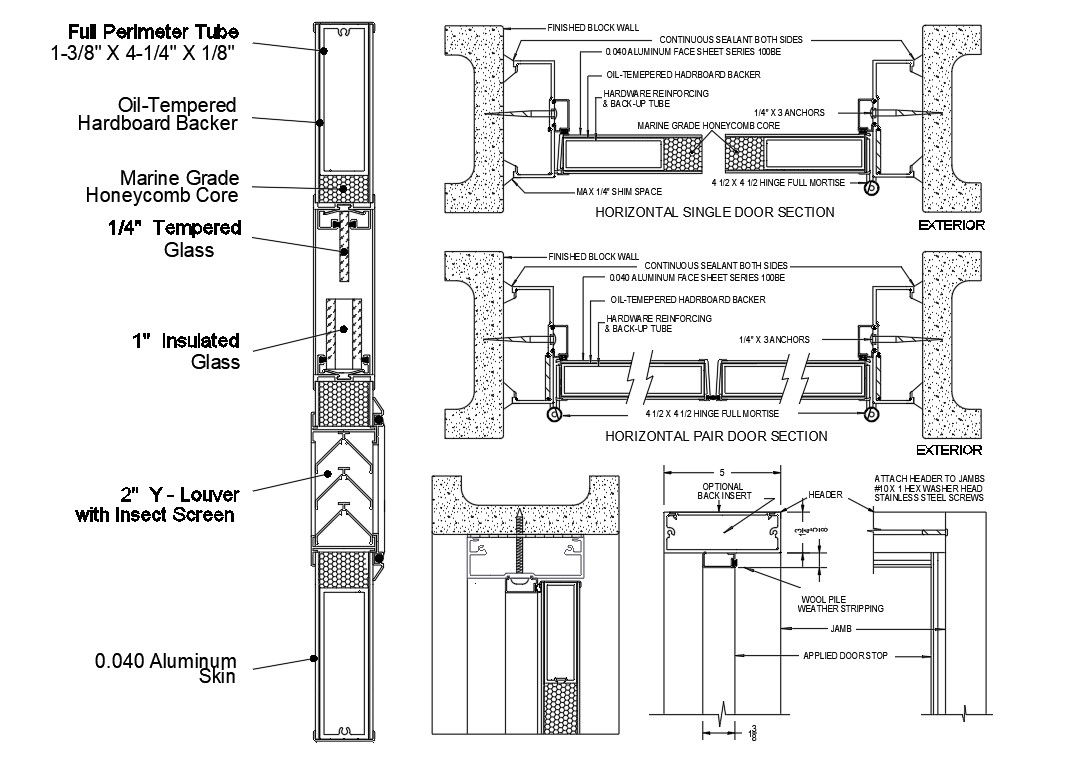

This aluminum flush door AutoCAD DWG drawing provides complete construction details with horizontal single and pair door sectional views. The drawing includes a full perimeter tube of 1-3/8 inch x 4-1/4 inch x 1/8 inch, 0.040 aluminum face sheet series 100BE, and oil-tempered hardboard backer for structural strength. It shows 1 inch insulated glass, 1/4 inch tempered glass, and marine-grade honeycomb core for thermal and acoustic performance. Continuous sealant on both sides, weather stripping, and an applied door stop are clearly detailed for airtight installation. This drawing is suitable for commercial and institutional building door systems.
