Steel structure details in plant cad drawing details dwg file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

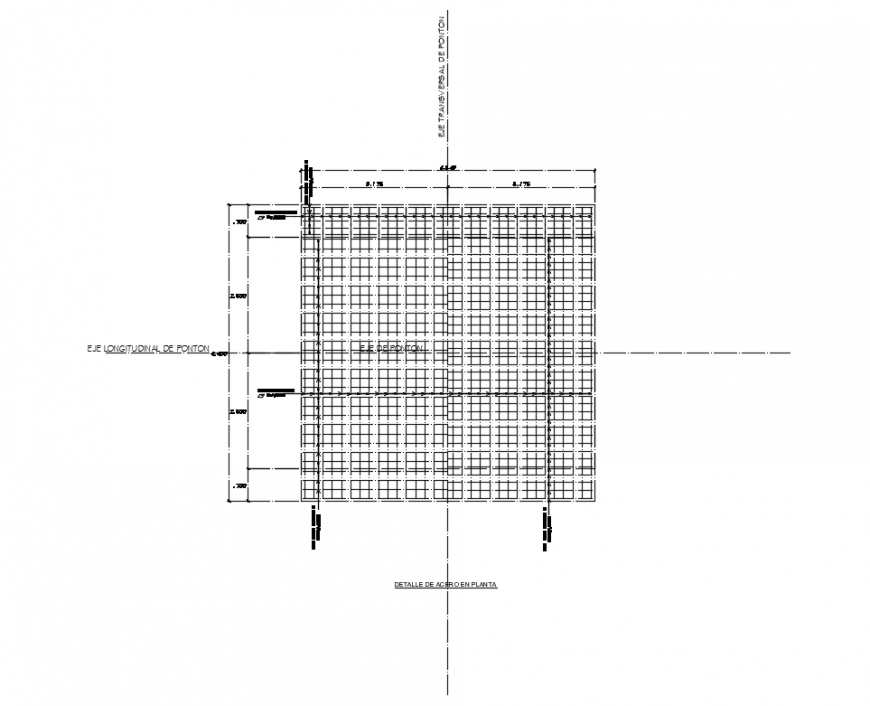

Steel structure details in plant cad drawing details that includes a detailed view of Longitudinal upper steel in slab 33φ3 / 4 "@ .20, Longitudinal lower steel in slab 38φ3 / 4 "@ .17, Transverse steel in slab 32φ5 / 8 "@ .20, longitudinal axis of ponton, Transverse steel in sardinel 32φ1 / 2 "@ and much more of steel structure details.
