This AutoCAD DWG provides a complete aluminium guide profile CAD drawing for model V10-75405, showing its full extrusion geometry with accurately marked dimensions such as 250 mm, 247 mm, 62 mm, and 16 mm on page 1. The detailed outline displays the exact contour of the profile, supported by a 1:1 scale for precise interpretation. The drawing also includes technical notes, coating references, extrusion standards under EN AW-6063 material specifications, and guidelines aligned with EN 12020-2 for aluminium profile tolerances. All visible edges, wall thicknesses, and contour transitions are drawn clearly for engineering and fabrication use.

The lower section contains a complete engineering data table that lists essential structural properties, including 38.62 cm² area, Ix = 77.15 cm?, Iy = 2332.90 cm?, Wx = 15.72 cm³, Wy = 144.42 cm³, X-Coord 95.4 mm, and the mass 10428.74 g of the aluminium profile. Additional information includes outer contour length values and section modulus required for strength calculations. These specifications make the DWG reliable for architects, product designers, civil engineers, and aluminium system manufacturers who require an accurate aluminium guide profile CAD layout for modelling, fabrication, façade detailing, and structural assessment.

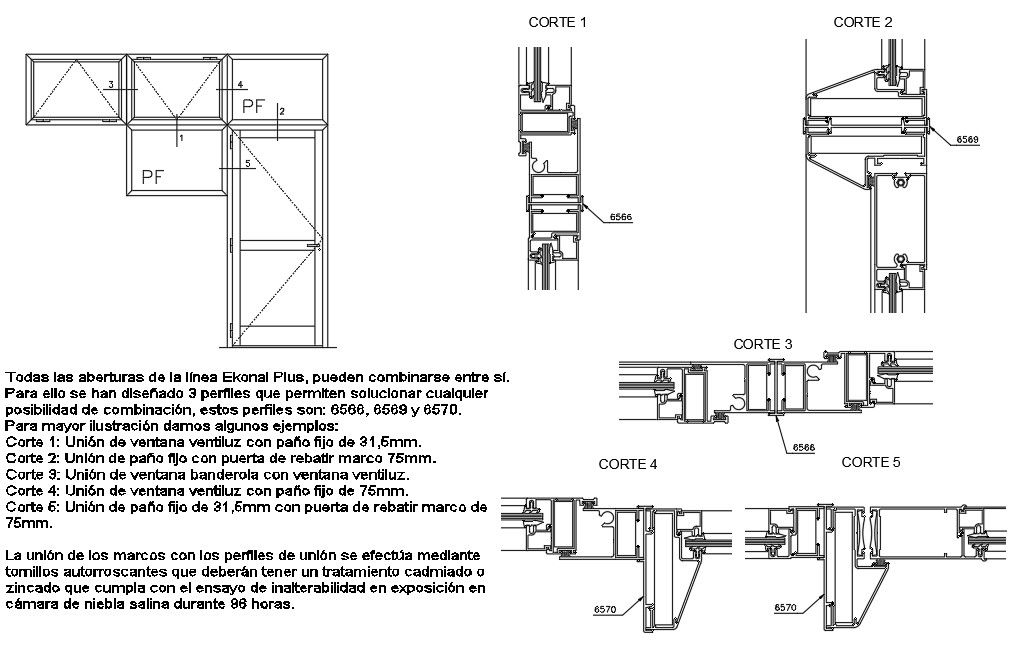

Coupling profiles Detail

Priyanka

Description

Autocad

54 KB

Dwg Cad Blocks

Aluminium Frame

Gold

Priyanka
