Swimming pool drainage constructive plumbing details dwg file

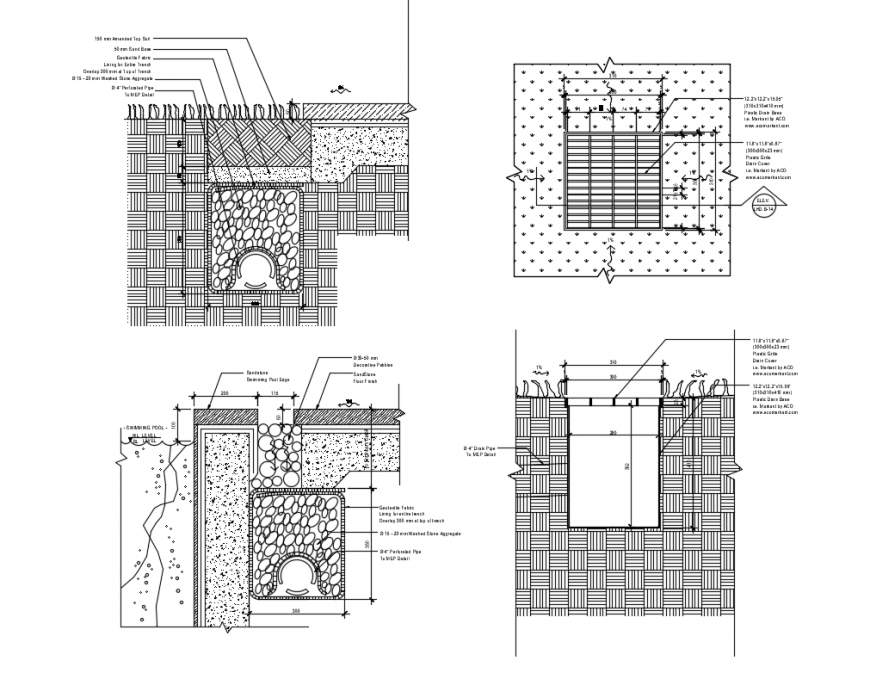

Swimming pool drainage constructive plumbing details that includes a detailed view of pool desk, geotextile fabric lining for entire trench overlap 300 mm at top of trench reinforced concrete slab, concrete curb, decorative pebble, to drain,cast iron grill drain cover, rolled cast concrete curb drain intel, pvc pipe to strom drain to m7e details, dimensions details and much more of constructive details.
